SHURFLO

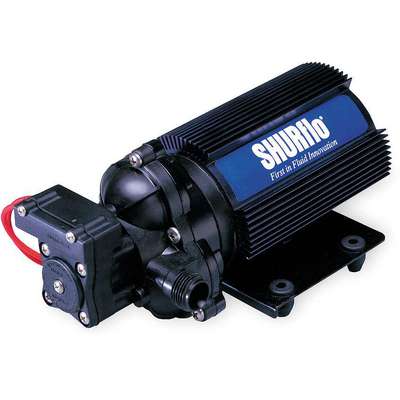

Diaphragm Pump: 1/2"-14 MSPT, 12V DC, 3.6 gpm Max. Flow, 45 psi Max. Pressure - Pumps
Hover over image to magnify
#918046-6 | Pkg Qty: 1
$332.72 pkg | $332.72 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL Listing and CSA
Maximum Flow
3.6 gpm
Body Material
Polypropylene
Maximum Pressure
45 psi
Brand
SHURFLO
Maximum Temperature (Deg. F)
140
Check Valve
Viton®
Mfr. Part Number
2088-313-145
Diaphragm Design
Santoprene®
Pack Quantity
1
Diaphragm Material
Santoprene®
Pressure Off
45
Fuse Amps
15 A
Pressure On
25
GPM @ 20 PSI
2.82
Pressure Switch
Operates on Demand
GPM @ 40 PSI
2.15
Prime in Feet
8
Housing Material
Polypropylene
Self-Priming
Yes
Inlet/Outlet
1/2 in.-14 MSPT
Shipping Weight
7.35 lb.
Item
Diaphragm Pump
Voltage
12 VDC
General
GPM @ 0 PSI
3.6 gpm
Max. Pressure - Pumps
45 psi
Housing Material - Pumps
Polypropylene
Voltage - Pumps
12V DC
Product Description
Sprayer Pumps
- Note: Not for use in potable water systems. Not for use with gasoline.
- Electric
- Thermally protected motors (except No. 4UN19) Sealless design
- Pumps can run dry without damage. Pressure demand switches automatically turn pumps off when the outlet is closed. Sealless design eliminates troublesome shaft seals and potential leakage into the motor.
- Flojet models are CSA and CE Certified.
- Part Numbers: 4UN18 to 4UN20
- Pumps come with 1 straight barb swivel fitting and one 90° elbow barb swivel fitting. Part Number: 4UN18 has heavy-duty heat sink for continuous-duty operation. Use with SHURflo® brand fittings only.
Item Barcode
Pump,Diaphragm,12 Vdc
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4UN18 | Pump, Diaphragm,12 |
 | UNSPSC CODES | 40151548 | |
 | VMRS (ATA) CODES | 053-006-009 | Pump, Diaphragm,12 |
