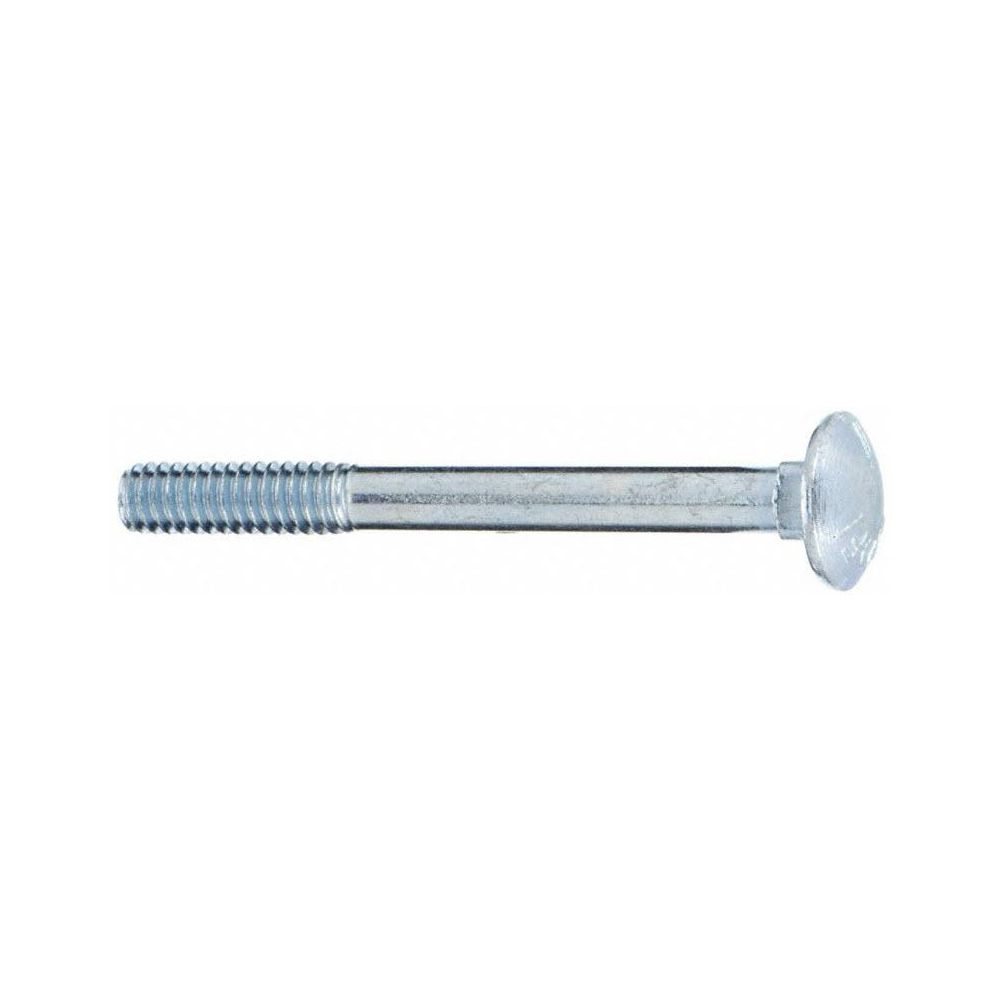

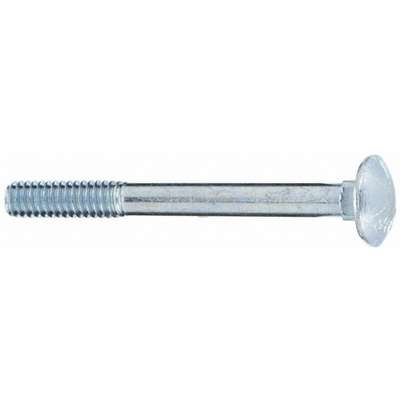

Carriage Bolt: Square, Steel, Grade 5, Zinc Plated, 1/2"-13 Thread Size, 2 1/2 in lg, Inch, 25 PK

Hover over image to magnify
Carriage Bolt,Steel,PK25
PI_Asset_1110318
Carriage Bolt,Steel,PK25
PI_Asset_1110318
Double tap image to magnify
Carriage Bolt,Steel,PK25
9179948_2
Carriage Bolt,Steel,PK25
9179948_2

#917994-8Pkg Qty: 25

$45.25 pkg | $1.81 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 09.
|

Technical Specifications

Key Specifications
Basic Material
Steel
Height Range
0.250 in. - 0.270 in.
Brand
APPROVED SUPPLIER
Item
Carriage Bolt
Carriage Bolt Material Grade/Class
Grade 5
Length Under Head
2-1/2 in.
Carriage Bolt Square Height
0.250 in. to 0.281 in.
Material
Steel
Carriage Bolt Square Width
0.492 in. to 0.515 in.
Meets/Exceeds
ASME B18.5
Carriage Bolt Thread Style
Partially Threaded
Mfr. Part Number
U08320.050.0250
Drill Size
1/2 in.
Neck Type
Square Neck
Fastener Head Diameter
1.032 in. to 1.094 in.
Package Quantity
25
Fastener Industry Standards
ASME B18.5
Shipping Weight
3.95 lb.
Fastener Thread Direction
Right Hand
System of Measurement
Fractional
Finish
Zinc Plated
Thread Size
1/2"-13
Grade
5
Thread Type
Coarse
Head Type
Round Head
General
Maximum Head Height
17/64 in
Minimum Neck Height
1/4 in
Maximum Neck Height
9/32 in
Minimum Neck Width
31/64 in
Maximum Neck Width
33/64 in
Neck Height
17/64 in
Minimum Head Diameter
1 1/32 in
Neck Width
1/2 in
Minimum Head Height
1/4 in

Product Description

The square neck on this carriage bolt cuts into wood to prevent turning while the nut is tightened.
