INGERSOLL RAND

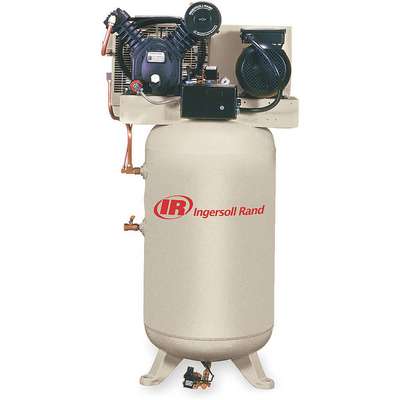

3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal

Hover over image to magnify
Electric Air Compressor,2
PI_Asset_3734932
Electric Air Compressor,2
PI_Asset_3734932
3 Phase - Electrical Vertical Tank Mounted 5.00HP - Air Compressor Stationary Air Compressor, 80 gal Video

#917987-1 | Pkg Qty: 1

$4,606.00 pkg | $4,606.00 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
(F)NPT Outlet
3/4 in.
Mfr. Part Number
2475N5-P-200-3
Air Consumption
scfm
Number of Stages
2
Amperage
14.4 A
Overall Height
70-1/8 in.
Amps AC
17-1/2
Overall Length
38-1/8 in.
Brand
INGERSOLL RAND
Overall Width
24 in.
Compressor Package Type
Fully Packaged
Package Quantity
1
Compressor Type
Tank Mounted
Phase
3
Control
Pressure Switch
Pump Location
Tank Mounted
Cylinder Material
Cast Iron
Pump RPM
1040
Duty Cycle
100 Percent
Pump Type
Cast Iron
Enclosure
NEMA 1
RPM
1040
Finish
Powder Coated
Shipping Weight
809 lb.
Free Air CFM @ Max Pressure
16.8
Tank Size
80 gal.
Horsepower
5
Tank Style
Vertical
Hz
60
Tank Type
Vertical
Input Voltage
200 VAC
Type
Fully Packaged, Splash Lubricated
Item
Electric Air Compressor
Voltage
200
Lubrication Type
Splash Lubricated
Warranty
2ACD6
Maximum Pressure
175 psi
Width
37 in.
General
ASME Tank
Yes
Max. Pressure - Air Compressor
175 psi
Air Tank Size
80 gal
Number of Stages - Air Compressor
2
Air Tank Style
Vertical
Off Pressure Switch Setting
175 psi
Compressor Voltage
200V AC
On Pressure Switch Setting
135 psi
Free Air CFM @ 175 PSI
16.8
Outlet Gender
Female
Free Air CFM @ Max. Pressure - Air Compressor
16.8
Output Power
5 hp
Free Air Flow Rate @ Max Pressure
16.8 cfm
Phase - Electrical
3
Free Air Flow Rate @ Maximum Pressure
16.8 cfm
Pump Location - Air Compressor
Tank Mounted
HP
5
Pump Oil Capacity
41.6 fl oz
HP - Air Compressor
5.0 hp
Sound Level Range
Standard (70 dBA or more)
Includes
Air Cooled Aftercooler, Electronic Drain Valve, Low Oil Protection Switch, Motor Starter, Pressure Gauge, Pressure Safety Valve
Standards
ASME, California Code, CSA
Input Voltage - Air Compressor
200V AC
Style - Air Compressor
Simplex
Life Expectancy
15,000 hr
Tank Size - Air Compressor
80 gal
Lubrication Type - Air compressor
Splash Lubricated
Tank Style - Air Compressor
Vertical
Max Operating Pressure
175 psi
dBA @ 3 Feet
79.4

Product Description

Compressor includes an air-cooled aftercooler to remove additional moisture, low oil protection switch to prevent pump from running dry, and electronic drain valve.

  • Expected pump life: 15,000 hr.
  • 100% continuous-duty
  • ASME tank with discharge isolation valve
  • Must be hardwired
  • Required start-up kit sold separately
