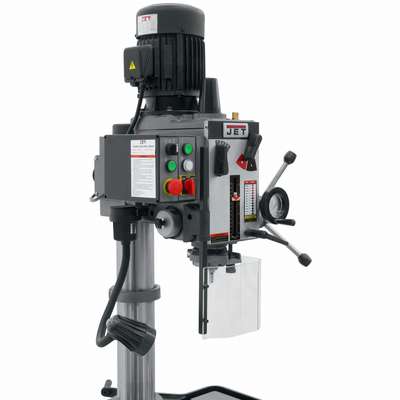

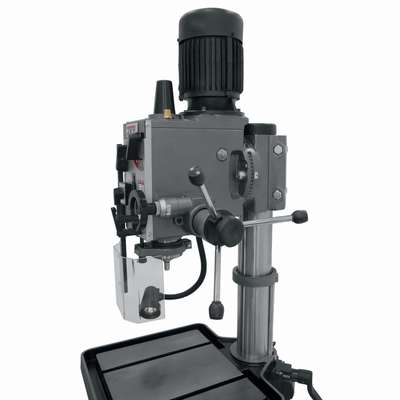

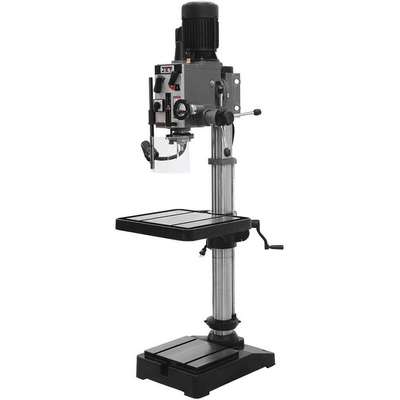

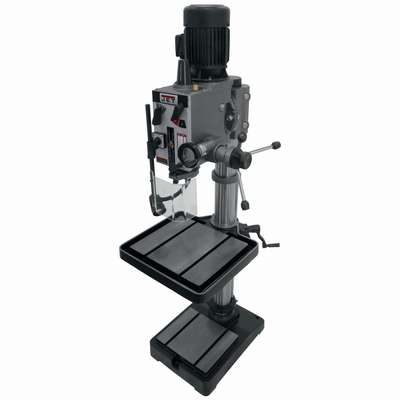

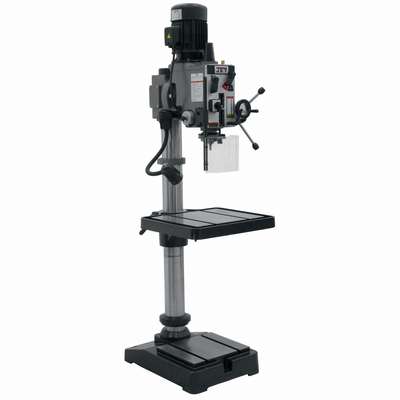

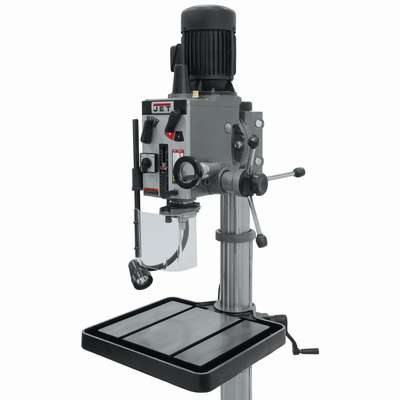

Jet Floor Drill Press: Geared Head, Fixed, 60 RPM û 3,000 RPM, 230 VAC /Three-Phase, 20" Swing

Hover over image to magnify
Geared Head Drill Press,10 In.,
PI_Asset_1757540
PI_Asset_1765337
PI_Asset_1771921
PI_Asset_1773580
PI_Asset_1774036
PI_Asset_1774037
PI_Asset_1774038
Geared Head Drill Press,10 In.,
PI_Asset_1757540
PI_Asset_1765337
PI_Asset_1771921
PI_Asset_1773580
PI_Asset_1774036
PI_Asset_1774037
PI_Asset_1774038

#917975-9 | Pkg Qty: 1

$5,392.97 pkg | $5,392.97 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Application
Drilling
Overall Height
71 in.
Brand
JET
Overall Width
32 in.
Chuck Size
Not included
Package Quantity
1
Corded/Cordless
Corded
Phase
Three-Phase
Drive Type
Geared Head
RPM
60 to 3000
Horsepower
2 HP
Shipping Weight
698 lb.
Hz
60
Speed Control
Fixed
Item
Floor Drill Press
Swing
20 in.
Mfr. Part Number
354020
Voltage
240
Overall Depth
24 in.
General
Chuck Style
Keyed
Maximum Spindle-to-Table Height
30 1/2 in
Column Diameter
4 1/2 in
Minimum Spindle Speed
60 RPM
Current
3.2/3.2 A
Nominal Voltage
230V AC
Drill Press Application
Drilling
Quill Diameter
3 in
Drill Press Type
Floor Stand
Speed Adjustment
Gear Head
Drill Spindle Travel
5 in - 6 in
Speed Range
60 to 3,000 RPM
Drilling Capacity in Cast Iron
1 1/2 in
Spindle Speed Range
60 RPM - 3,000 RPM
Drilling Capacity in Stainless Steel
1 in
Spindle Travel
5 in
Drilling Capacity in Steel
1 1/4 in
Spindle-to-Column Distance
10 in
Drilling Capacity in Wood
1 1/2 in
Table Length
21 3/4 in
Guard Included
Yes
Table Load Capacity
275 lb
Includes
Chuck Arbor, Draw Bar
Table Slot
Yes
Maximum Overall Height
71 in
Table Slot Width
5/8 in
Maximum Spindle Speed
3,000 RPM
Table Width
19 1/2 in
Maximum Spindle-to-Base Height
44 15/16 in

Product Description

Production Drill Presses, Floor Drill Press, Drive Type Geared Head, Swing 20 in, Spindle Taper 3MT, Motor HP 2 hp, Capacity Steel 1 1/4 in, Capacity Cast Iron 1 1/2 in, Drilling Capacity Wood Not Specified, Includes Chuck Arbor, Draw Bar, Power Down Feed Included No, Voltage 240, Number of Speeds 12, Chuck Size Not Included, Spindle Speed 60 to 3000 rpm, Spindle Travel 5 in, Base Size 26 in x 18 in, Table Work Surface 21-1/4 in x 18-1/2 in, Hz 60, Phase 3, Number of T-Slots 2

Documents

JET Elite 354020 Milling Machine Overview and Spec Sheet
JET Models GHD-20 20T 20PF 20PFT Drilling Tapping Presses OIPM
