LAMP

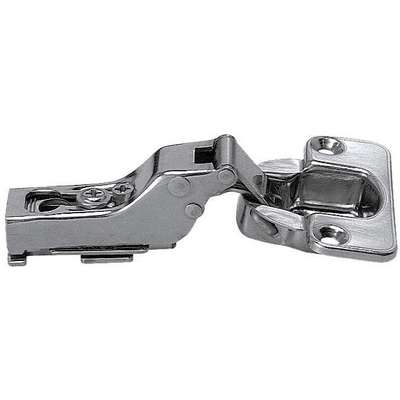

Concealed Hinge with Bright Stainless Steel Finish, Screw-On Mounting for 25/32" Door Thickness
Hover over image to magnify
#917945-9 | Pkg Qty: 1
$17.34 pkg | $17.34 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
LAMP
Package Quantity
1
Item
Concealed Hinge
Shipping Weight
.16 lb.
Mfr. Part Number
304B-46/19
General
Door Leaf Height
1 1/2 in
Frame Leaf Thickness
0.094 in
Door Leaf Length
1 1/2 in
Frame Leaf Width
1 57/64 in
Door Leaf Thickness
0.094 in
Includes
Screws, Mounting Plate
Door Leaf Width
2 11/64 in
Leaf Thickness
1 5/64 in
Door Thickness
25/32"
Range of Motion
100 °
Frame Leaf Height
1 41/64 in
Required Door Thickness
25/32 in
Frame Leaf Length
1 41/64 in
Product Description
The Leaf® concealed hinge for cabinet doors provides a clean look for environments where aesthetics are important. 100° opening gives you full access to the contents of your cabinets.
- 19mm overlay
- Mounting hardware included
Expertly Selected Product Pairings
Item Barcode
Concealed Hinge Free Swinging
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4WDT5 | Concealed Hinge Free |
 | UNSPSC CODES | 31162403 | |
 | VMRS (ATA) CODES | 072-004-000 | Concealed Hinge Free |
