APPLETON ELECTRIC

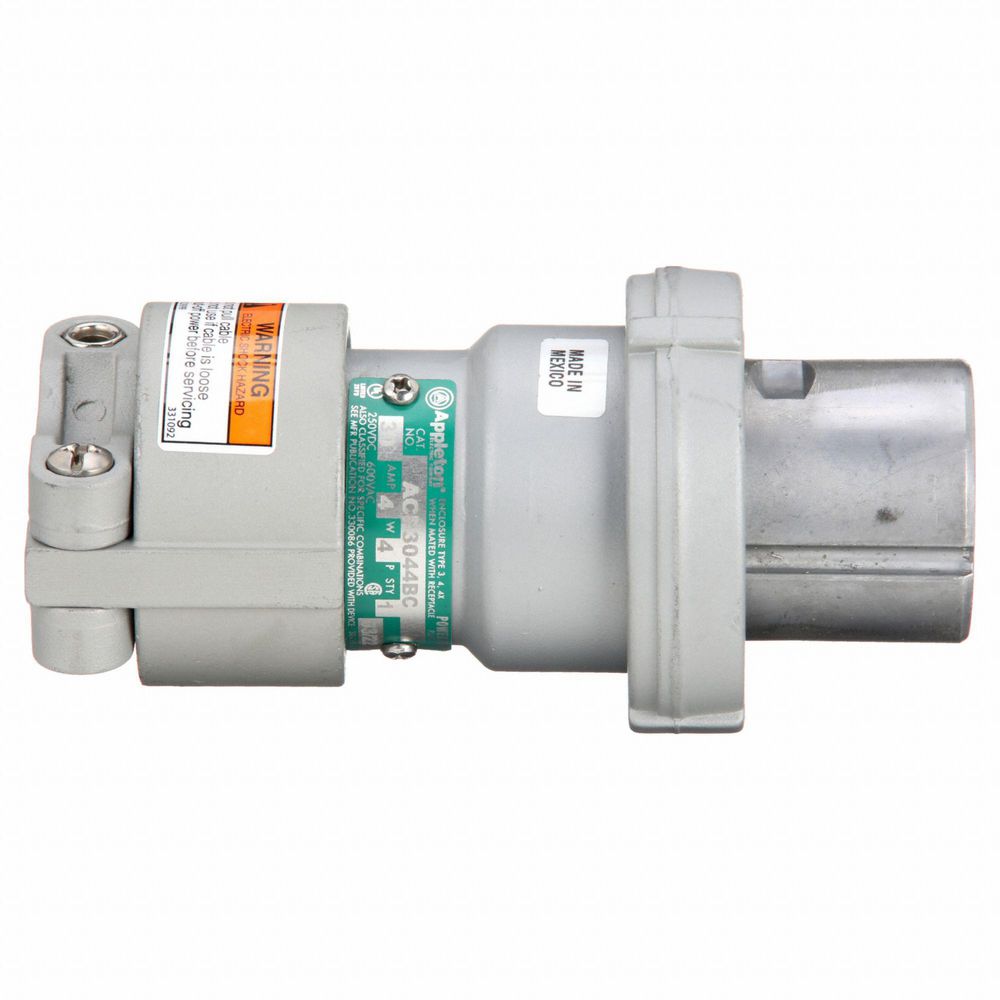

Appleton Electric Plug, 600VAC Voltage, 30 Amps, Number of Poles: 4, Number of Wires: 4
Hover over image to magnify
#917873-5 | Pkg Qty: 1
$573.06 pkg | $573.06 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
30 A
Maximum Wire Size
8 AWG
Amps
30 A
Mfr. Part Number
ACP3044BC
Brand
APPLETON ELECTRIC
Minimum Operating Temperature
-25 °C
Cap Type
Screw-On Cap
Minimum Wire Size
10 AWG
Color Family
Gray
NEMA Rating
3, 3R, 4, 4X
Compatible With
DBR; EBR; EBRH; FSQC; ID2SR; JBR; MD2SR
Number of Poles
4
Connection Orientation
Straight
Number of Wires
4
Current Rating
30 A
Outside Diameter
3.13 in.
Face Diameter
1.86 in.
Overall Length
6 in.
Features

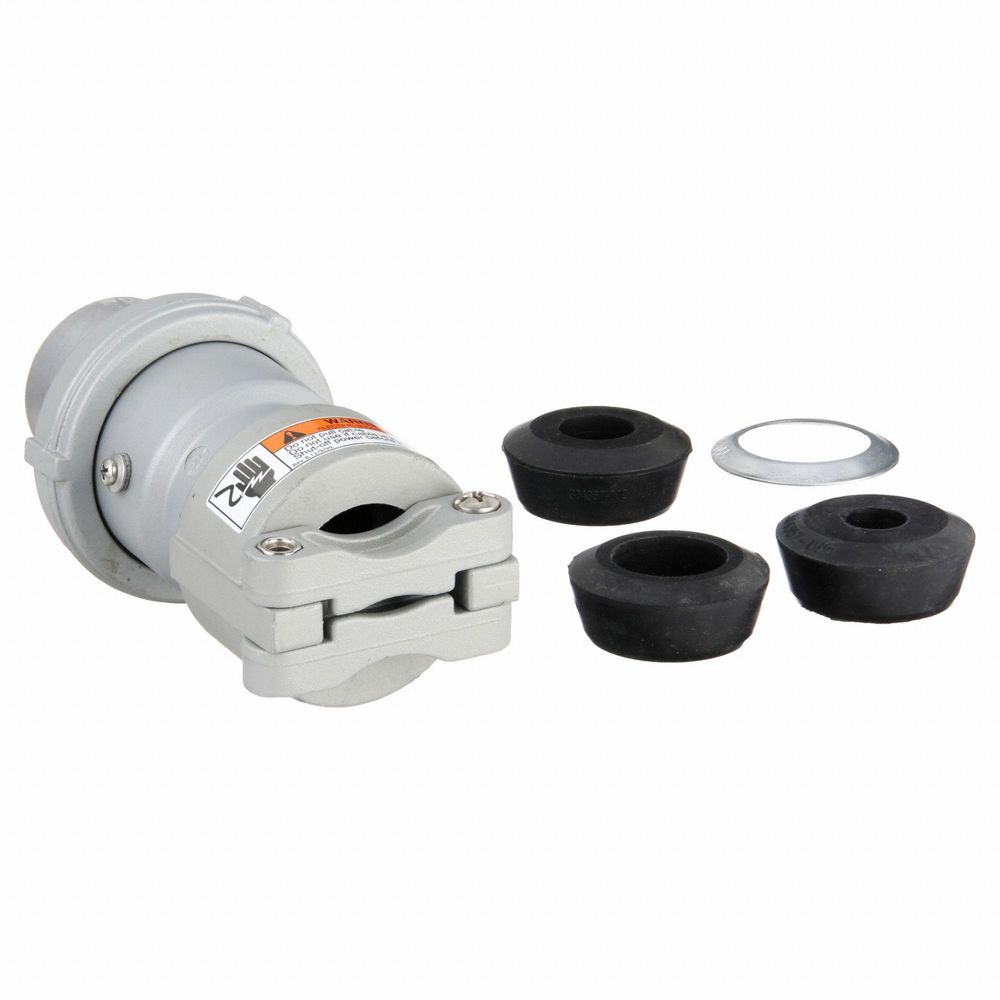

Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing, Neoprene Bushing Compressed by Cable Collar Prevent Entrance of Water
Package Quantity
1
For Maximum Cable Diameter
1.125 in.
Phase
Three
For Minimum Cable Diameter
0.5 in.
Pin & Sleeve Standards
CSA Certifications, cUL Listed, UL 1682, UL Listed
Grounding
Grounded
Polarized
No
Grounding Style
Style 1
Reverse Service
No
Horsepower
40 hp
Shipping Weight
1.71 lb.
Housing Color
Gray
Standards
CSA Certified 065179, CSA Certified C22.2 No. 182.1-13, cULus E145917 (200 Amp), UL 1682, UL 50E, UL E145916, UL E145917
Housing Material
Copper-Free Aluminum
Switch Rated
No
Item
Watertight Pin and Sleeve Plug
Type
Pin and Sleeve
Material
Copperfree Aluminum
Voltage
600V AC
Material of Construction
Copperfree Aluminum
Voltage Rating
250V DC, 600V AC
Maximum Operating Temperature
40 °C
Wire Connection Type
Wire Leads
General
HP
20 hp
Housing Material Finish
Epoxy Coat with Powder Finish
Product Description
Copper-free aluminum construction helps this clamping ring plug resist corrosion.
Expertly Selected Product Pairings
Item Barcode
Plug,30A,4P,4W,Alum,600V,Nema
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 12G132 | Plug,30A,4P, 4W,Alum,600V, |
 | UNSPSC CODES | 39121402 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,30A,4P, 4W,Alum,600V, |
