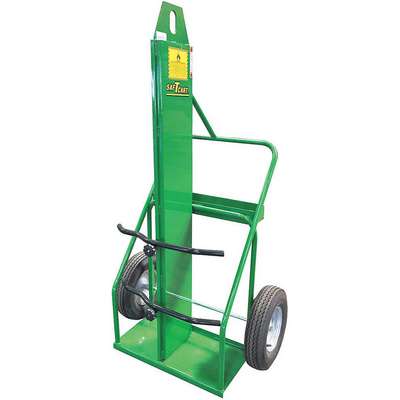

Cylinder Cart,Continuous Frame Flow-Back, 1000 lb., Cylinder Capacity 2, 66" H X 35"W

Hover over image to magnify
Cylinder Cart,Powder Coated,
Cylinder Cart,Powder Coated,

#917801-8 | Pkg Qty: 1

$999.99 pkg | $999.99 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Base Plate Dimensions
13 X 24 in.
Maximum Tank Diameter Oxygen
9-1/2 in.
Brand
APPROVED SUPPLIER
Mfr. Part Number
871-16FW-LE
Color Family
Green
Overall Depth
12 in.
Cylinder Capacity
2
Overall Height
66 in.
Finish
Powder Coated
Overall Width
35 in.
Hand Truck Handle Type
Continuous Frame Flow-Back
Package Quantity
1
Hand Trucks Group
Cylinder Hand Trucks
Shipping Weight
115 lb.
Item
Cylinder Cart
Wheel Bearings
Ball
Load Capacity
1000 lb.
Wheel Diameter
16 in.
Material
Steel
Wheel Type
Pneumatic
Maximum Tank Diameter Acetylene
12-1/2 in.
Wheel Width
4 in.
General
Assembled
Yes
Includes Foot Assist
Without Foot Assist
Axle Dia.
3/4 in
Includes Lever Pushoff
Without Lever Pushoff
Axle-Mounted Wheel Bearings
Ball Bearing
Includes Lift Ring
With Lift Ring
Axle-Mounted Wheel Dia.
16 in
Includes Stair Climber
Without Stair Climber
Axle-Mounted Wheel Type
Pneumatic
Lifting Ring Inside Diameter
3 in
Axle-Mounted Wheel Type/Material
Pneumatic Rubber
Max. Tank Dia. Acetylene
12 1/2 in
Axle-Mounted Wheel Width
4 in
Max. Tank Dia. Oxygen
9 1/2 in
Axle-Mounted Wheel/Tread Material
Rubber
Nose Plate Depth
13 in
Brake Type
No Caster Brake
Nose Plate Material
Steel
Caster/Wheel Configuration
(2) Axle-Mounted
Nose Plate Profile
Standard
Caster/Wheel Mounting Location
2-Wheel
Nose Plate Thickness
3/32 in
Compatible with Product Type
Oxygen and Acetylene Cylinders
Nose Plate Type
Solid Straight
Cylinder Orientation
Side by Side
Nose Plate Width
24 in
Firewall Rating
1-hour
Nose Plate WxD
13 in x 24 in
Firewall Thickness
1 in
Overall Height - Cylinder Lowered
62 in
For Maximum Container Diameter
12 1/2 in
Overall Height - Cylinder Raised
62 in
For Maximum Cylinder Diameter
12 1/2 in
Overall HxWxD
44 in x 34 in x 12 in
For Surface Type
Concrete, Grass, Wood
Securing Mechanism
Perma Clamp
For Use With
Oxygen and Acetylene Cylinders
Securing Mechanism Height
26 in
Hub Position
Offset
Standards
OSHA 1910.253
Includes
Firewall, Perma Clamps for Cylinders Securement
Tool Tray Height
30 1/2 in
Includes Firewall
Yes
Tool Tray Width
22 1/4 in

Product Description

Firewall welding cylinder hand trucks are used to move oxygen and acetylene gas cylinders in welding applications where cylinders may be stored on the trucks for long periods of time (more than 24 hours). They have a steel firewall that creates a barrier between the two cylinders and helps prevent fires or explosions. The firewall also protects the cylinders from damage during transfer and storage.
