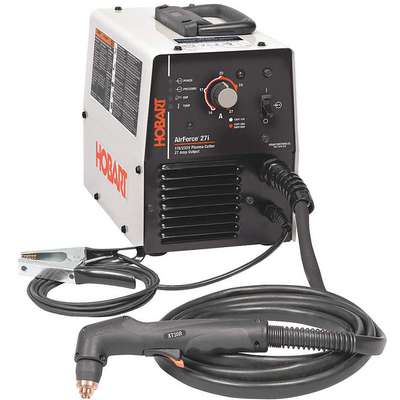

Hobart Plasma Cutter, Airforce 27i Series, Input Voltage: 120/240 V
Hover over image to magnify
#917800-3 | Pkg Qty: 1
$2,424.43 pkg | $2,424.43 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
HOBART
Input Voltage
110 VAC, 115 VAC, 120 VAC, 220 VAC, 230 VAC, 240 VAC
Cable Length
12 ft.
Item
Plasma Cutter
Cutting Capacity
5/8 in.
Mfr. Part Number
500575
Design
Inverter
OCV
400VCD
Duty Cycle
240V - 35%, 120V - 20%
Package Quantity
1
For Material Type
Mild Steel
Rated Output
27 A
For Maximum Material Thickness
3/8 in.
Series
AirForce 27i
For Minimum Material Thickness
1/8 in.
Shipping Weight
21.85 lb.
Input
13.9/28.8 A
General
Application
Plasma Cutting
Open Circuit Voltage
400 V DC
Cable Length (Ft.)
12
Overall Depth (In.)
14.25 in
Cutting Cable Length
12 ft
Overall Height (In.)
11.25 in
Cutting Capacity (In.)
5/8 in
Overall Width (In.)
8 1/4 in
Cutting Configuration
Plasma Cutting
Plasma Cutter Model
500575
Ground Cord Length
12 ft
Plasma Cutter Type
Plasma Cutter
Includes
12 ft Work Cable with Clamp, Consumables Kit, XT30R Hand-Held Torch with 12 ft Cable
Plasma Cutting Minimum Output Current
14 A
Input (Amps)
13.9/28.8A
Plasma Cutting Output @ Duty Cycle
20 A @ 88V DC, 60% (120 V), 27 A @ 92V DC, 35% (120 V), 30 A @ 92V DC, 40% (240 V)
Input Voltage (Nominal)
120V
Plasma Torch
12 ft Handheld
Max. Amperage Range
Less than 50 A
Plasma Torch Type
Handheld
Max. Input Current
20 A @ 120V DC (Single-Phase)
Rated Output at Duty Cycle
20 A @ 60%, 27 A @ 35%
Maximum Output Current
27 A
Required Air Flow
5 cfm
Maximum Pressure - Air Compressor
90 psi
Product Description
Inverter-based cutter features an ergonomic handle to help prevent operator fatigue, and a flexible cable for easy maneuverability. 27i Series can cut through all conductive metals, up to 5/8" thick. Operates from standard 120 or 240VAC power with MVP power cord.
