RULE

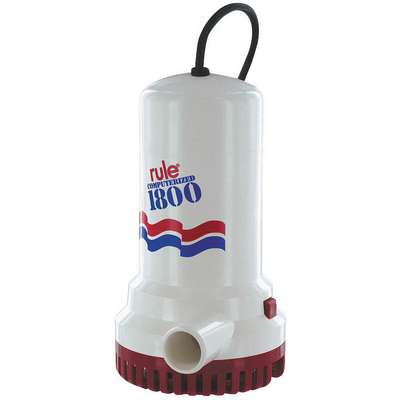

1/4 HP Sensor Utility Pump with 120VAC Voltage and Discharge NPT 1-1/8", 8 ft. Cord Length

Hover over image to magnify
Pump, Sensor Utility,1/4 Hp,
PI_Asset_3734259
Pump, Sensor Utility,1/4 Hp,
PI_Asset_3734259

#917788-4 | Pkg Qty: 1

$282.60 pkg | $282.60 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps
1 AC
Item
Sensor Utility Pump
Amps AC
1
Maximum Diameter Solids
3/32 in.
Base Material
Acetal
Maximum Head
15 ft.
Bearing Type
Ball
Maximum Liquid Temperature
104°F
Brand
RULE
Mfr. Part Number
A53S
Cord Length
8 ft.
Motor Enclosure
TEFC
Cord Size
16/3
Motor Housing
Acetal
Cord Type
SJTW
Motor Type
Permanent Magnet
Diameter
4
Package Quantity
1
Discharge NPT
1-1/8 in.
Phase
1
Duty
Continuous
Pump HP
1/4
Function
Automatic Off
Pump Type
Sensor Utility
GPM of Water @ 10 Ft. of Head
12
Shaft Material
Buna N, PTFE
GPM of Water @ 5 Ft. of Head
21
Shaft Seal
Buna N, PTFE
Handle
No
Shaft Seal Material
Buna-N, PTFE
Height
7-3/8 in.
Shipping Weight
5.05 lb.
Horsepower
1/4
Switch Type
Electronic
Housing
Valox
Thermal Protection
Yes
Housing Material
Valox
Top Material
Acetal
Hz
60
Type
Sensor Utility
Impeller Material
Glass Filled Nylon
Voltage
120 VAC
Input Phase AC
1
Width
4-1/4 in.
General
Application
For Use with Nonflammable Liquids Compatible with Pump Component Materials, For Draining Flooded Basements, Boats, Ponds, Sumps
Max. Liquid Temp.
104 Degrees F
Body Dia.
4 in
Nameplate Voltage Combo
110V AC
Discharge Dia.
1 1/8 in
Nominal Voltage
110V AC
Features
Automatic Off
Phase - Pumps
1
Flow Rate @ 10 Ft. of Head
12 gpm
Rated Voltage
110V AC
Flow Rate @ 5 Ft. of Head
21 gpm
Shaft Seal Material - Pumps
Buna-N, PTFE
For Use With
Water
Switch Actuation
Sensor
Includes
Snap On Discharge Adapters; 90 Degree Elbow to 1" FNPT and a Straight to Male 3/4" GHT
Width at Widest Point
4 1/4 in

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
