ARO

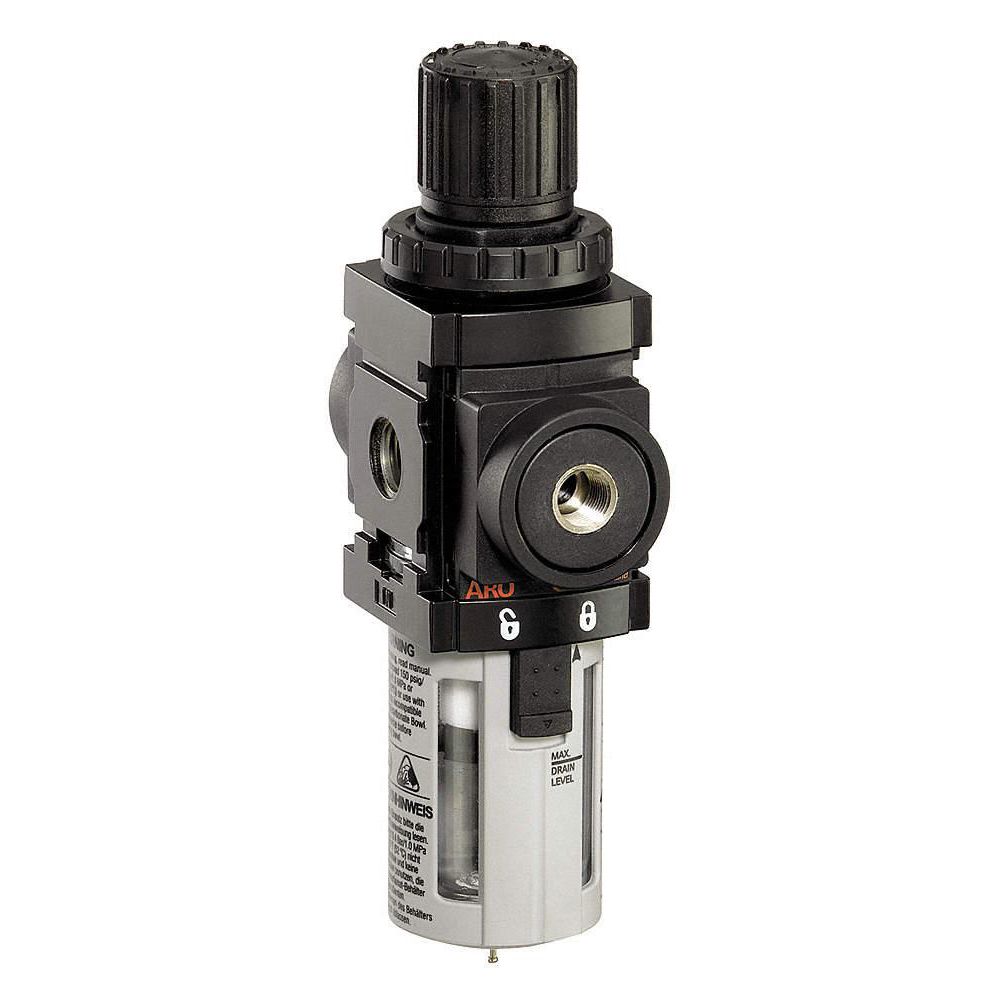

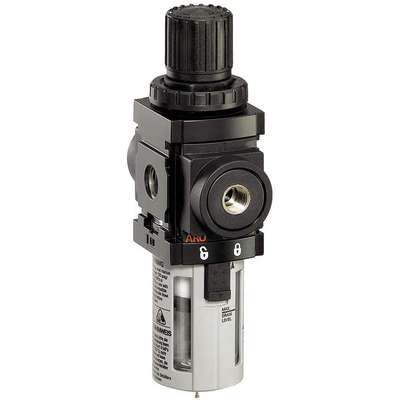

Filter-Regulator: 1 in NPT, 250 cfm, 5 micron, 0 psi to 140 psi, 250 psi Max Op Pressure
Hover over image to magnify
#917758-6 | Pkg Qty: 1
$375.73 pkg | $375.73 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Adjustment
0 to 140 psi
Maximum Temperature (Deg. F)
175
Adjustment Knob
Standard
Mfr. Part Number
P39464-110
Air Consumption
scfm
NPT
1 in.
Bowl Material
Metal
Overall Height
13.64 in.
Brand
ARO
Overall Width
4.09 in.
Drain Type
Manual
Package Quantity
1
Filter Rating
5 micron
Pipe Size
1 in. NPT
Item
Filter/Regulator
Series
3000
Maximum Flow
250 cfm
Shipping Weight
5.19 lb.
Maximum Flow (CFM)
250 CFM
Type
1 Piece
Maximum Pressure
250 psi
Width
4.09 in.
Maximum Temperature
175 deg. F
General
Adjustment Mechanism
Knob
For Substance Type
Oil, Particles, Water
Adjustment Range
0 to 140 psi
Gauge Port Size
1/8 in
Adjustment Range - Air Treatment
0 to 140 psi
Includes
Panel Nut
Air Inlet Type
NPT
Max. Flow - Air Treatment
250 cfm
Air Outlet Size
1 in
Max. Flow Range - Air Treatment
201 to 300 cfm
Air Outlet Type
NPT
Max. Incoming Pressure - Air Treatment
250 psi
Bowl Material - Air Treatment
Metal
Maximum Regulated Pressure
140 psi
Bowl Size - Air Treatment
5.3 oz
Minimum Regulated Pressure
0 psi
Connection Size - Air Treatment
1 in NPT
Number of Air Inlets
1
Drain Part Compatibility
104322
Number of Air Outlets
1
Filter Bowl Capacity
5.3 oz
Pressure Drop
33 psi
Filter Bowl Material
Metal
Pressure Gauge Port Size
1/8 in
Filter Element Material
Polyethylene
Pressure Gauge Port Type
NPT
Filter Rating (Microns)
5
Regulator Type
Relieving
Filter Rating - Air Treatment
5 micron
Sight Gauge Included
Yes
For Fluid Type
Oil, Particles, Water
Size - Air Treatment
Jumbo
For Removal Of
Oil, Particles, Water
Product Description
This filter-regulator combines an air filter and air regulator in a single unit. It is designed to remove solid and liquid contaminants from air, while also providing controlled, consistent air pressure.
