MADISON

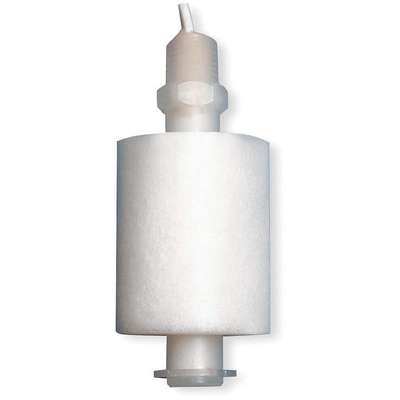

Madison Vertical Open Tank Liquid Level Switch, Selectable, Polypropylene, 1/4" NPT
Hover over image to magnify
#917755-8 | Pkg Qty: 1
$64.45 pkg | $64.45 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Polypropylene
Mounting
Vertical Open Tank
Brand
MADISON
Mounts
Vertical
Conduit Size
1/4 in.
Operating Temperature Range
221 deg. F
Contact Form
SPST
Operation
NO/NC
Electrical Connections
22 ga. MTW Coated 24 in. Leads
Overall Length
3.38 in.
Fitting
1/4 in. NPT
Package Quantity
1
Float Diameter
1.50 in.
Shipping Weight
.1 lb.
Float Length
2.00 in.
Stem Length
2.63 in.
Float Material
Polypropylene
Stem Material
Polypropylene
Float Specific Gravity
0.76
Switch Function
Selectable
Height
3.41 in.
Switch Type
Seamless Formed Floats, 22 Gauge, 24 in. Leads
Item
Liquid Level Switch
Tank Connection Size
1/4 in. NPT
Maximum Current
0.50A
Type
Liquid Level
Maximum Pressure
100 psi
VA Rating
60
Maximum Temperature (Deg. C)
105
Width
1-1/2 in.
Maximum Voltage
240 V
Wire Gauge
22 AWG
Mfr. Part Number
M8800
Wire Lead
24
General
Operating Temp. Range
221°F Max
Standards
UL, CSA, CE, NSF
Product Description
This switch mounts on the top and bottom surfaces of a tank or vessel to actuate High/Low alarms or controls for motor starters, contactors, solenoids, and relays. The encapsulated, dependable, magnetically coupled dry reed switch is designed to deliver more than 5 million switching cycles at rated electrical load.
Item Barcode
Lqd Lvl Swch,Vrtcal,1/4"Npt,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2A552 | Lqd Lvl Swch, Vrtcal,1/ |
 | UNSPSC CODES | 39122219 | |
 | VMRS (ATA) CODES | 053-006-009 | Lqd Lvl Swch, Vrtcal,1/ |
