HONEYWELL

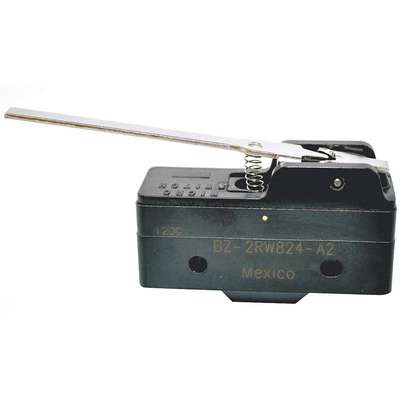

Honeywell 15A @ 240 V Hinge, Lever, Long Industrial Snap Action Switch; Series BZ
Hover over image to magnify
#917731-6 | Pkg Qty: 1
$35.81 pkg | $35.81 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
15 A @ 240 V
Lever Actuator Length
2.50 in.
Actuator Length
2.50 in.
Maximum Pretravel
0.175 in.
Actuator Type
Hinge, Lever, Long
Mfr. Part Number
BZ-2RW824-A2
Amperage
15 A
Mounting Dimension
1.00 in. Centers
Basic Actuator Type
Lever
Number of Circuits
1
Brand
HONEYWELL
Operating Force
0.7N
Contact Form
SPDT
Operating Temperature Range
-6 deg. F to 185 deg. F
Contact Type
SPDT
Over Travel
5.56mm
Current Rating
15A
Package Quantity
1
DC Contact Rating
15 A @ 240 V
Release Force
0.494 oz.
Depth
0.7 in.
Series
Bz
Differential Travel
0.18mm
Shipping Weight
.05 lb.
Electrical Connection
Screw
Snap Action Switch Type
Industrial Snap Action Switch
Height
1 in.
Type of Actuator
Long Lever
Housing Material
Phenolic
Voltage
250 VAC
Item
Industrial Snap Action Switch
Voltage Rating
250 VAC
Length
2 in.
Width
2 in.
General
AC Contact Rating - Snap Action Switch
15 A @ 240 V
Height - Snap Action Switch
1 in
Actuator Type - Snap Action Switch
Hinge, Lever, Long
Lever Actuator Length - Snap Action Switch
2.5 in
Basic Actuator Type - Snap Action Switch
Lever
Mounting Dimension - Snap Action Switch
1.00 in Centers
Contact Form- Switches
SPDT
Number of Circuits - Snap Action Switch
1
DC Contact Rating - Snap Action Switch
15 A @ 240 V
Operating Temp. Range
-67° to 185°F
Depth - Snap Action Switch
0.7 in
Standards
UL, CSA, ENEC
Electrical Connection - Snap Action Switch
Screw
Width - Snap Action Switch
2 in
Product Description
This large basic snap switch is designed for use in irrigation systems, semi-trailer trucks, timing devices, office equipment, test instruments, medical and dental equipment, HVAC equipment, manually operated devices, and valves. It features a long lever actuator.
Expertly Selected Product Pairings
Documents
Item Barcode
Lg Basic Snap Switch,15A,Spdt,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 24A083 | Lg Basic Snap Switch, |
 | UNSPSC CODES | 39122209 | |
 | VMRS (ATA) CODES | 053-006-009 | Lg Basic Snap Switch, |
