ACTION PUMP

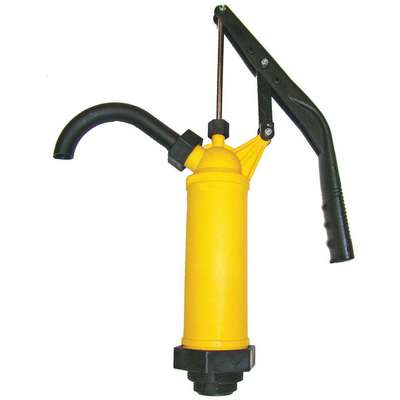

Polypropylene Hand Operated Drum Pump, Lever, Ounces per Stroke: 8, 10 or 12
Hover over image to magnify
#917722-3 | Pkg Qty: 1
$71.98 pkg | $71.98 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action Type
Lever
Maximum Liquid Temperature
140°F
Adapter Diameter
1-1/2 in. x 2 in.
Maximum Viscosity
1000 CPS
Adapter Material
Polypropylene
Metered
No
Adapter Type
Bung
Mfr. Part Number
P-490S
Agency Compliance
ISO 22241-3
Mfr. Warranty Length
1 yr.
Brand
ACTION PUMP
Ounces per Stroke
8, 10 or 12
DEF Compatible
Yes
Outlet Size
7/8"
Discharge Tube Length
6"
Overall Length
50 in.
Discharge Tube Outlet Outside Diameter
1"
Pack Quantity
1
Discharge Tubing Material
Polypropylene
Piston Material
Polypropylene
Food Grade
No
Power Source
Hand Operated
For Use On
15, 30 and 55 gal. Drums
Pump Body Material
Polypropylene
GPM
9
Seal Material
Polypropylene
Gasket Material
Viton
Self-Priming
Yes
Hand Operated Pump Action Type
Hand Operated Lever Pumps
Shipping Weight
2.1 lb.
Housing Material
Polypropylene
Spout Material
Polypropylene
Inlet Size
1"
Suction Tube Length
36 in.
Item
Hand Operated Drum Pump
Suction Tube Outlet Outside Diameter
1-1/2 in.
Maximum GPM for Oil
5
Suction Tube Type
Polypropylene
Maximum GPM for Water
9
Type
Lever Action
Maximum Head
3 ft.
Wetted Materials
304 Stainless Steel, Polypropylene, Viton
General
Adapter Connection Type
MNPT
Includes Spout
Yes
Application
Lubricants, Detergents and certain Alcohols
Includes Suction Tube
Yes
Bung Connection Dia.
1-1/2 in x 2 in
Max. Flow Rate
8, 10 or 12 oz per stroke
Compatible Chemicals
Ammonia (Liquids), Diesel Fuel, Ethyl (Ethanol), Ethylene Glycol, Glycerin, Isopropyl (Isopropanol), Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Phosphoric Acid (40% Solution), Sodium Bicarbonate (10%)
Max. Fluid Temp.
140 Degrees F
Discharge Tube Outlet ID
11/16 in
Max. Head - Pumps
3 ft
Discharge Tube Outlet OD
1 in
Max. Head Pressure
3 psi
Features
Adjustable 8, 10 or 12 oz Per stroke, Yellow
Max. Outlet Pressure
8 psi
For Container Size
15 gal, 30 gal, 55 gal
Min. Operating Temp.
35 Degrees F
For Container Type
Bucket, Drum, Pail
Not Recommended Chemicals
Hydrochloric/Muriatic Acid (100%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%)
For Media Type
Ammonia, Diesel Fuel, Ethanol, Ethylene Glycol, Glycerin, Isopropanol, Nitric Acid, Phosphoric Acid (40% Solution), Sodium Bicarbonate
Pump Package Type
Basic Pump with Spout
For Use With
Lubricants, Detergents and certain Alcohols
Runs Dry
Yes
Height Above Container
18 3/4 in
Spout Connection Size
55/64 in
Housing Material - Pumps
Polypropylene
Suction Tube ID
1 in
Includes
0.49" Spout Reducer, Telescopic Intake Tube
Suction Tube Material
Polypropylene
Includes Bung Adapter
Yes
Suction Tube OD
1 1/2 in
Product Description
Cleaning hand drum pumps are made of materials that withstand the potentially corrosive effects of cleaning products. They are used to dispense and transfer small volumes of soap, detergent, degreaser, wax, or other cleaning solutions used in janitorial and sanitation work.
Item Barcode
Hand Drum Pump,Polypropylene
