KILLARK

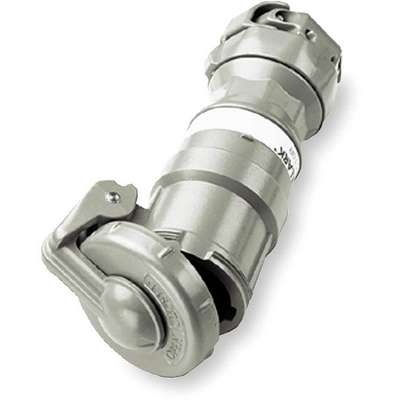

Killark Pin and Sleeve Connector, 600VAC/250VDC Voltage, 60 Amps, Number of Poles: 4, Number of Wires: 3
Hover over image to magnify
#917719-7 | Pkg Qty: 1
$827.21 pkg | $827.21 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
60 A
Material of Construction
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Amps
60 A
Maximum Wire Size
2 AWG
Brand
KILLARK
Mfr. Part Number
VPR6465
Cap Type
Flip-Up and Screw-On Cap
Minimum Wire Size
6 AWG
Color Family
Gray
NEMA Rating
3, 4, 4X
Compatible With
Versamate®
Number of Poles
4
Connection Orientation
Straight
Number of Wires
3
Contact Material
Brass
Outside Diameter
4.38 in.
Current Rating
60 A
Overall Length
9.69 in.
Features
Increased Safety Type Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
Package Quantity
1
For Environment
Cold, Corrosive, Hazardous Location, Washdown, Wet
Phase
3
For Maximum Cable Diameter
1.5 in.
Power Indicating Light
No
For Minimum Cable Diameter
0.65 in.
Reverse Service
No
Grounding
Grounded
Shipping Weight
3.85 lb.
Grounding Style
Style 2
Shrouded
Yes
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Standards
CSA Certified LR111846, UL E10757
Housing Color
Gray
Switch Rated
No
Housing Material
Copper-Free Aluminum
Type
Grounding Style II
Housing Material Type
Metallic
Voltage
600V AC/250V DC
Item
Pin and Sleeve Connector
Voltage Rating
250V DC, 600V AC
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Wire Connection Type
Screw Terminals
General
Compatible with Series
Versamate(R)
Market
Industrial
Housing Material Finish
Baked Powder Epoxy Coated; Polyester Finish
Resistance Properties
Corrosion Resistant
Product Description
Pin and Sleeve Connector, Voltage 600V AC/250V DC, Amps 60 A, HP, Number of Wires 3, Number of Poles 4, Material Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish, NEMA Rating 4X
Expertly Selected Product Pairings
Item Barcode
Pin & Slve Conn,60A,4P,3W,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5HJ68 | Pin & Slve Conn,60A,4P, |
 | UNSPSC CODES | 39121421 | |
 | VMRS (ATA) CODES | 032-001-017 | Pin & Slve Conn,60A,4P, |
