SCHNEIDER ELECTRIC

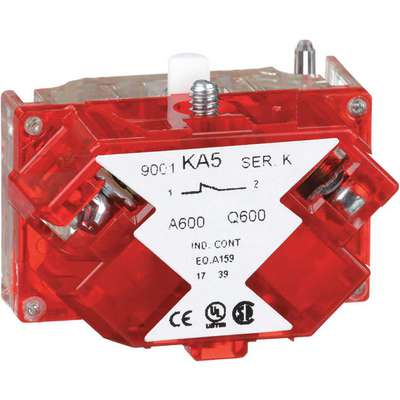

Schneider Electric Contact Block, 30mm, 1NC, Late Opening Contact Form, 10A @ 600VAC Contact Rating
Hover over image to magnify
#917719-4 | Pkg Qty: 1
$27.42 pkg | $27.42 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Action
Momentary
Mfr. Part Number
9001KA5
Amperage
10 AC/2.5 DC
NEMA Contact Rating Designation
A600/P600
Application
Finger Safe Operator
Package Quantity
1
Brand
SCHNEIDER ELECTRIC
Product Size
30 mm
Color Family
Red
Shipping Weight
.05 lb.
Contact Form
1NC, Late Opening
Size
30 mm
Contact Rating
10 A @ 600 VAC
Terminal Connection
Screw/Clamp
Contact Type
1NC
Type
Late Open
For Use With
Schneider 9001K Series 30mm Operators
Type of Operator
Finger Proof Shroud
Item
Contact Block
Wire Range
#12-24
General
Standards
UL, CSA, CE
Product Description
30mm Contact Blocks
- NEMA rated A600-P600 #12 to 24 AWG wire range allows use of more common small wire sizes
- Terminals are at 20° angle to eliminate interference with other contact blocks mounted in tandem. Feature double-break fine silver contacts with wiping action.
