TSURUMI

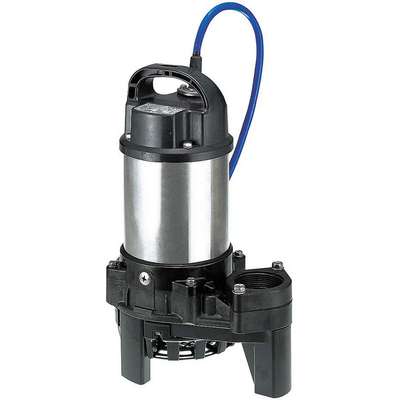

1/2 HP Electric Submersible Submersible Sewage Pump, 115 Voltage, 62 GPM of Water @ 15 Ft. of Head
Hover over image to magnify
#917716-2 | Pkg Qty: 1
$1,920.85 pkg | $1,920.85 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL 778
Maximum Diameter Solids
25/64 in.
Amps
5.8
Maximum Head
43 ft.
Base Material
Resin
Maximum Liquid Temperature
104°F
Bearing Type
Double Shielded Pre Lubricated Ball
Mfr. Part Number
50TM2.4S-63 (115V)
Body Material
Titanium
Mfr. Warranty Length
2 yr.
Brand
TSURUMI
Motor RPM
3397
Cord Length
32 ft.
Motor Type
Air Filled
Diameter
9-5/16 in.
Off Point
516 in.
Discharge
2 in. FNPT
On Point
4-1/2 in.
Discharge NPT
2 in.
Overall Height
14-3/16 in.
Duty Cycle
Continuous
Package Quantity
1
GPM of Water @ 10 Ft. of Head
72
Phase
1
GPM of Water @ 15 Ft. of Head
62
Pump HP
1/2
GPM of Water @ 20 Ft. of Head
52
Pump Type
Electric Submersible
GPM of Water @ 25 Ft. of Head
40
RPM
3397 RPM
GPM of Water @ 30 Ft. of Head
27
Shaft Material
Titanium
GPM of Water @ 40 Ft. of Head
6
Shaft Seal
Silicon Carbide
GPM of Water @ 5 Ft. of Head
79
Shaft Seal Material
Silicone Carbide
Height
14-3/16 in.
Shipping Weight
19.75 lb.
Horsepower
1/2
Switch Type
None
Housing
Titanium
Thermal Protection
Yes
Housing Material
Titanium
Top Material
Resin
Impeller Material
Glass Fibre Reinforced Plastic
Voltage
120 VAC
Input Phase AC
1
Warranty
2 yr.
Item
Submersible Sewage Pump
General
Body Dia.
9 5/16 in
Min. Sump Pit Dia.
8 in
Discharge Dia.
2 in
Nominal Voltage
110V AC
Discharge Gender
Female
Phase - Pumps
1
Discharge Standard
NPT
Rated Voltage
120V AC
Flow Rate @ 10 Ft. of Head
72 gpm
Shaft Seal Material - Pumps
Silicone Carbide
Flow Rate @ 15 Ft. of Head
62 gpm
Standards
UL 778
Flow Rate @ 20 Ft. of Head
52 gpm
Switch Actuation
No Switch Included
Flow Rate @ 40 Ft. of Head
6 gpm
Switch Electrical Connection
No Switch Included
Max. Liquid Temp.
104 Degrees F
Product Description
These general purpose 110 to 120V sewage ejector pumps remove sewage containing solids from drains where a gravity system won't work, such as in septic systems that are below the main sewer line. They are compatible with most standard U.S. residential electrical wall outlets.
