LITTLE GIANT

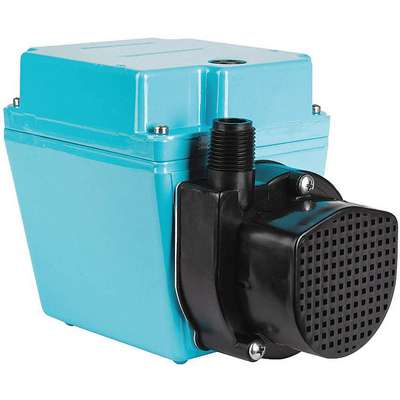

1/12 HP Compact Submersible Pump, 115V Voltage, Continuous Duty, 6 ft. Cord Length
Hover over image to magnify
#917715 | Pkg Qty: 1
$432.89 pkg | $432.89 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Agency Compliance
UL
Inlet Fitting Size
3/4 in. FNPT
Brand
LITTLE GIANT
Inlet Type
3/4 in. (F)NPT
Cord Length
6 ft.
Item
Compact Submersible Pump
Duty
Continuous
Length
7 in.
Full Load Amps
3-1/2
Maximum GPM for Water
13-1/2
GPH of Water @ 1 Ft. of Head
810
Maximum Head
24.5 ft.
GPH of Water @ 10 Ft. of Head
613
Mfr. Part Number
504203
GPH of Water @ 15 Ft. of Head
415
Outlet
1/2 in. (M)NPT
GPH of Water @ 20 Ft. of Head
173
Outlet Size
1/2 in.
GPH of Water @ 3 Ft. of Head
790
Package Quantity
1
GPH of Water @ 5 Ft. of Head
745
Pump Material
Aluminum
GPH of Water @ 9 Ft. of Head
630
Pump Type
Compact Submersible Centrifugal
GPM @ 1 Ft. of Head
14
Screen Material
Polypropylene
GPM of Water @ 10 Ft. of Head
10.2
Seal Material
Viton
GPM of Water @ 5 Ft. of Head
12.4
Shipping Weight
7.8 lb.
Height
5-1/2 in.
Type
Compact Submersible Centrifugal
Horsepower
1/12
Use With
Nonflammable Liquids Compatible with Pump Component Materials
Housing Material
Nylon
Voltage
115 V
Hz
60
Volute Material
Nylon
Impeller Material
Nylon
Width
4-1/2 in.
Inlet
3/4 in. (F)NPT
General
Application
Water
Intake and Discharge Size
3/4 in , 1/2 in
Compatible Discharge Pipe Size
1/2 in
Liquid Temperature Range
30 to 120 deg. F
Compatible Intake Pipe Size
3/4 in
Maximum Feet of Head
24 ft
Compatible with Media Type
Oil
Maximum Media Temperature
120 Degrees F
Discharge Type
NPT
Motor Housing Material
Epoxy Coated Cast Aluminum
Features
Submersible
Motor Sealing
Oil-Filled
Feet of Head (Minimum)
1 ft
Mounting Location
Submersible
Flow Rate @ 1 ft of Head (Maximum)
810 gph
Nameplate Voltage
115V AC
Flow Rate @ 10 ft of Head (Maximum)
613 gph
Overload Protection
Yes
Flow Rate @ 15 ft of Head (Maximum)
400 gph
Pump Housing Material
Cast Aluminum
Flow Rate @ 5 ft of Head (Maximum)
745 gph
Pumping Application
Air Conditioners, Machine Tool Coolants, Mild Acids, Recirculation, Submersible, Water Displays, Water Transfer
For Use With
Water
Standards
UL
Intake Type
NPT
Thermal Overload Protection
Yes
Product Description
This Little Giant® compact submersible pump features a die-cast motor housing that’s epoxy-coated for corrosion protection. Ideal for use with coolant systems, wet saws, evaporative coolers, and air conditioning systems.
