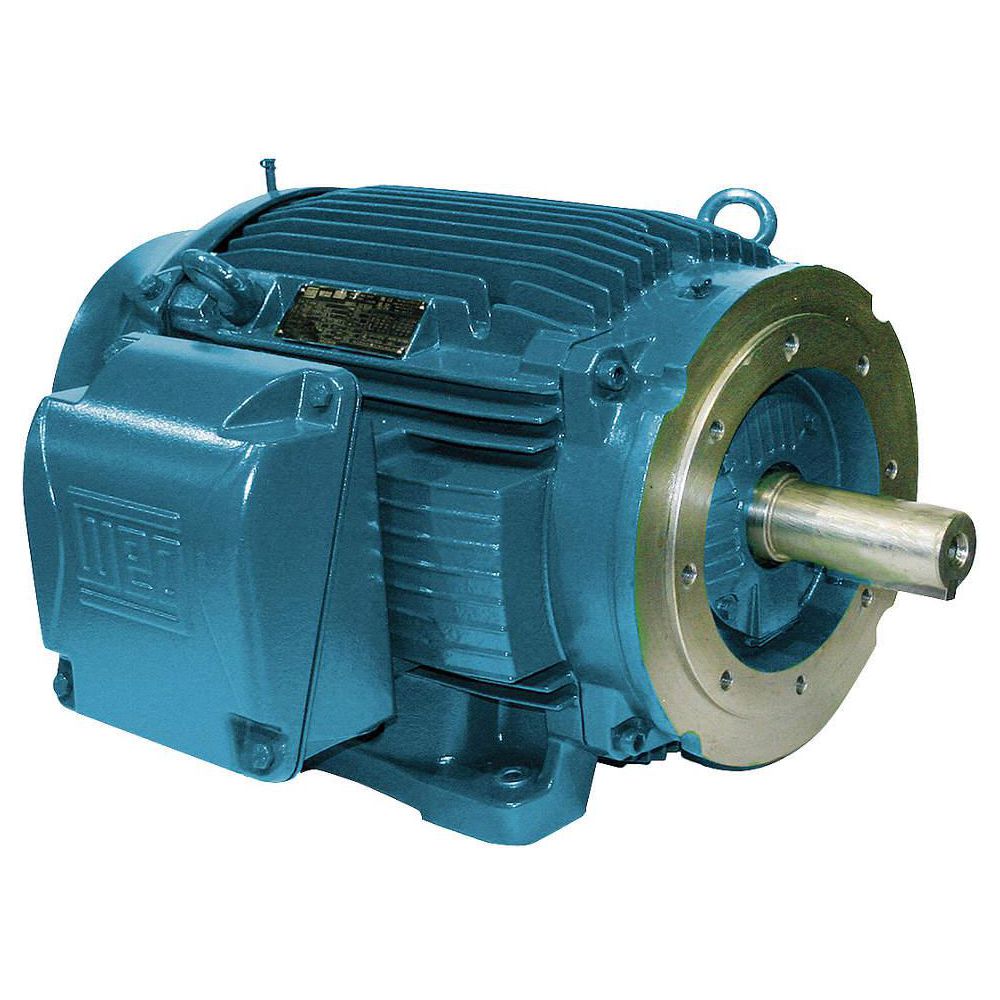

WEG General Purpose Motor, 7 1/2 HP, 3-Phase, Nameplate RPM 1,765, Voltage 230/460V AC, 213TC Frame

Name: WEG General Purpose Motor, 7 1/2 HP, 3-Phase, Nameplate RPM 1,765, Voltage 230/460V AC, 213TC Frame
Brand: WEG
SKU: 9176961
Price: 1119.55 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#917696-1Pkg Qty: 1

$1,119.55 pkg | $1,119.55 ea

This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085

Expected to arrive Tue. Mar 25.

Technical Specifications

Key Specifications

Bearings

Ball

Mounting

Face/Base

Brand

WEG

Mounting Position

All Angle

Duty

Continuous

NEMA/IEC Frame

213TC

Duty Cycle

Continuous

Nameplate RPM

1765

Enclosure

Totally Enclosed Fan-Cooled

Overall Length

19-1/2 in.

Frame

213TC

Package Quantity

Frame Material

Cast Iron

Phase

Three

Full Load Amps

18.4/9.2

Rotation

CW/CCW

Service Factor

1-1/4

Insulation Class

Shaft Length

3-3/8 in.

Item

General Purpose Motor

Shaft Type

Keyed

Length Less Shaft

16-1/8 in.

Shipping Weight

154 lb.

Mfr. Part Number

00718ET3E213TC-W22

Thermal Protection

None

Mfr. Warranty Length

3 yr.

Uses

Premium Efficiency Performance on Pumps Fans, Blowers and Other industrial Equipment

Motor Design

3-Phase

Voltage

230/460 VAC

Motor Type

3-Phase

General

CC Number

CC029A

No. of Speeds

Efficiency Group

NEMA Premium Efficient

Nominal Efficiency

91.7 %

Full Load Amps @ 50Hz

10.3, 10.5, 11.0

RPM @ 50Hz

1,460

Green Certification or Other Recognition

NEMA Premium® Rated

RPM Group

1701-1800

7 1/2

RPM Range

1,701-1,800

HP @ 50Hz

7 1/2

Shaft Dia.

1 3/8 in

Inverter Rated

Yes

Standards

CE, CSA, NOM, UL

Max. Ambient Temp.

40 °C

Usable @ 208V

Yes

Motor Application

General Application

Voltage @ 50Hz

380V AC, 400V AC, 415V AC

Motor Efficiency Group

NEMA Premium Efficient

Voltage Compatibility

200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

NEMA Design

Product Description

NEMA 210 frame three-phase general purpose AC motors have a standard 1-3/8" diameter, 3-3/8" length shaft whose center is 5-1/4" above the mounting surface. Variations to the frame's standard dimensions and design are indicated by a letter designation following the frame number, such as 213TCV. The letter “T” specifies integral HP motor dimension standards set by NEMA in 1953 and 1964, “C” indicates that the motor can be face mounted, and “V” indicates that the motor can be vertically mounted. These frame standards and letter designations are defined by the National Electrical Manufacturers Association (NEMA).
