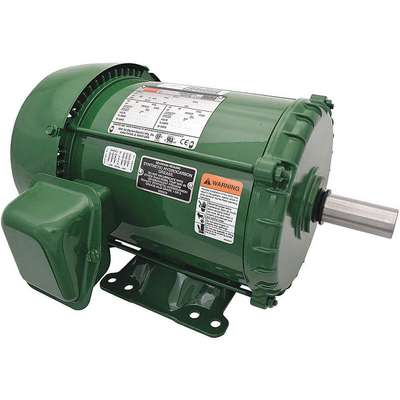

Dayton 5 HP General Purpose Farm Duty Motor,3-Phase,1755 Nameplate RPM,230/460 Voltage,Frame 184T

Name: Dayton 5 HP General Purpose Farm Duty Motor,3-Phase,1755 Nameplate RPM,230/460 Voltage,Frame 184T
Brand: DAYTON
SKU: 9176824
Price: 1587.48 USD
Availability: InStock

Hover over image to magnify

#917682-4 | Pkg Qty: 1

$1,587.48 pkg | $1,587.48 ea

This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045

Technical Specifications

Key Specifications

Agency Compliance

UL Recognized (E47479), CSA Certified (225293)

Mounting Position

Horizontal

Bearings

Ball

NEMA/IEC Frame

184T

Brand

DAYTON

Nameplate RPM

1755

Duty

Continuous

Overall Length

15-7/8 in.

Duty Cycle

Continuous

Package Quantity

Enclosure

Totally Enclosed Fan-Cooled

Phase

Three

Frame

184T

Rotation

CW/CCW

Full Load Amps

12.5/6.2

Service Factor

1.15

60/50

Shaft Length

2-3/4 in.

Insulation Class

Shaft Orientation

Horizontal

Item

General Purpose Farm Duty Motor

Shaft Type

Keyed

Length Less Shaft

13-1/8 in.

Shipping Weight

86.7 lb.

Mfr. Part Number

35Z920

Thermal Protection

None

Motor Design

3-Phase

Type

3-Phase

Motor Type

3-Phase

Voltage

230/460 VAC

Mounting

Rigid Base

General

Application

Farm Duty

Motor Frame Material

Rolled Steel

CC Number

CC030A

Motor Mounting Position

Horizontal

Conduit Box

Included

Motor Mounting Type

Rigid Base

Efficiency Group

Premium

Motor Service Factor

1.15

Fan Blade Material

Plastic

Motor Shaft Design

Keyed

Motor Shaft Rotation

CW/CCW

Includes

Shaft Slinger, Gasketed Conduit Box, Shaft Key

NEMA Design

Ins. Class

No. of Speeds

Max. Ambient Temp.

40 °C

Nominal Efficiency

89.5 %

Motor Application

Farm Duty

RPM Range

1,701-1,800

Motor Bearings

Ball

Shaft Dia.

1 1/8 in

Motor Efficiency Group

NEMA Premium Efficient

Standards

CSA Certified (258525), UL Recognized (E47479)

Motor Enclosure Design

Totally Enclosed Fan-Cooled

Voltage Compatibility

200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC

Product Description

General purpose farm-duty motors are three-phase and don't require starting capacitors, run capacitors, or centrifugal starting switches that can wear out and fail. They operate with a higher torque and greater efficiency than single-phase models of the same HP, rpm, and frame size. Motors are commonly used for augers, air compressors, conveyors, pumps, and other farm equipment. They have enclosures that help protect them from moisture, but they are not airtight or waterproof.
