CONDOR USA, INC

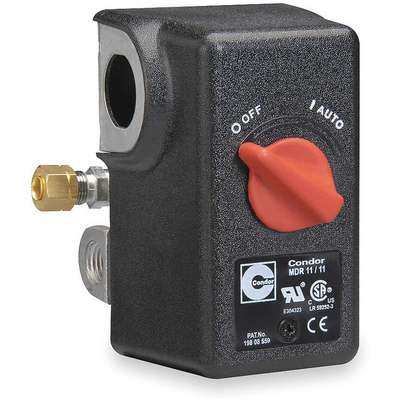

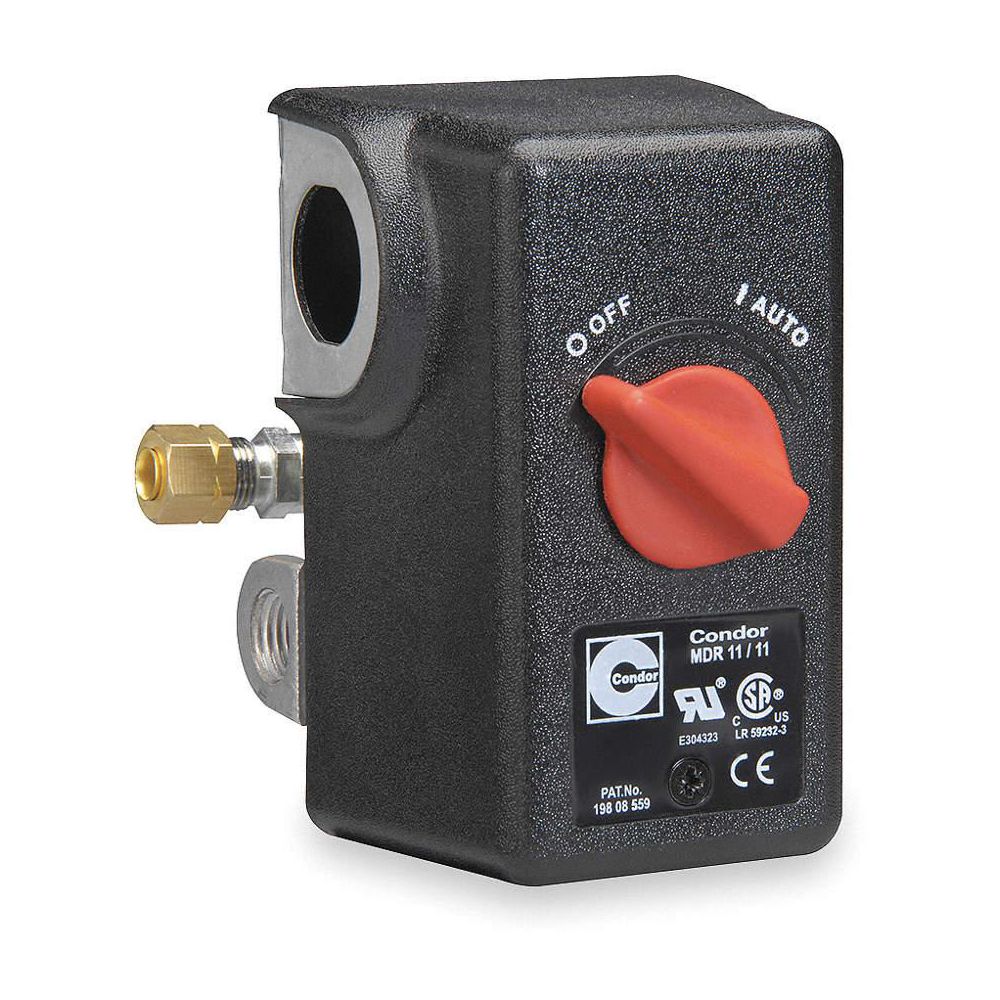

Condor Usa, Inc Air Compressor Pressure Switch; Range: 40 to 175 psi, Port Type: (4) Port, 1/4" FNPT
Hover over image to magnify
#917656-7 | Pkg Qty: 1
$26.14 pkg | $26.14 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
26 A @ 240 V
Number of Ports
4
Action
Standard
Package Quantity
1
Actuation Type
Diaphragm
Phase
Single
Amperage
26 A
Port Type
4-Port 1/4 in. FNPT
Brand
CONDOR USA, INC
Pressure Range
40 to 175
Burst Pressure
500 psi
Pressure Switch Action
Standard
Contact Form
DPST
Pressure Switch Application
Air Compressor
Contact Type
DPST
Pressure Switch Differential
30 to 65 PSI
Differential
30 to 65 PSI
Pressure Switch Electrical Contact Form
DPST
Differential Pressure
30 to 65
Pressure Switch Factory On/Off Setting
140/175 PSI
Enclosure
NEMA 1
Pressure Switch Port Type
(4) Port, 1/4 in. FNPT
Factory On/Off Setting
140/175 psi
Pressure Switch Range
40 to 175 psi
HP @ 1 Phase - 120 V
2
Pressure Switch Unloader
1/4 in. Compression
HP @ 1 Phase - 230 V
3
Range
40 to 175 PSI
HP @ 1 Phase - 240 V
3
Series
Mdr11
IP Rating
54
Shipping Weight
1.2 lb.
Item
Pressure Switch
Temperature Range
-22 deg. F to 257 deg. F
Manual Switch Action
Auto/Off
Type
Air Compressor
Mfr. Part Number
11KC2E
Unloader
1/4 in. Compression
NEMA Rating
1
General
Application
Air Compressor
HP @ 1 Phase - 240V
3 hp
HP @ 1 Phase - 120V
2 hp
Special Features
4 kW/4 HP Switching Capacity, 11 Bar/160 psi Maximum Cut-Out Pressure
HP @ 1 Phase - 230V
3
Standards
CSA Certified
Product Description
This pressure switch is designed for use with air compressors. It features an actuation-type diaphragm.
