DAYTON

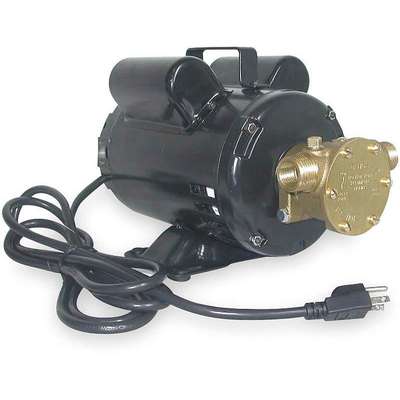

7.2/3.6 Amps 1/3 HP Flexible Impeller Pump, 21.6 psi, 1/2 NPT x 3/4 GHT
Hover over image to magnify
#917652 | Pkg Qty: 1
$793.37 pkg | $793.37 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amps
7.2/3.6 A
Maximum Viscosity
5000 SSU
Brand
DAYTON
Mfr. Part Number
3ACB9
Characteristics
Positive Displacement Pumping Action Without Metal-to-Metal Contact.
Motor Type
ODP
GPM of Water @ 10 Ft. of Head
9.6
Package Quantity
1
GPM of Water @ 20 Ft. of Head
8.1
Prime in Feet
16-20 Wet
GPM of Water @ 30 Ft. of Head
6.8
RPM
1725
GPM of Water @ 40 Ft. of Head
4.4
Seal
Nitrile Lip
Horsepower
1/3
Self-Priming
Yes
Housing Material
Bronze
Shaft Material
Stainless Steel
Impeller Material
Nitrile
Shipping Weight
20 lb.
Item
Pump
Type
Flexible Impeller
Maximum Pressure
21.6 psi
Voltage
115 - 230
Maximum SSU @ 1725 RPM
5000
General
Application
Pumps are used in a wide range of commercial, industrial, and agricultural applications where non-abrasive fluids compatible with the pump component materials are being used.
NEMA Motor Frame
56YZ
HP
1/3 hp
Suction Lift (Ft.)
16-20 Wet, 20-22 Wet
Includes
Carrying Handle, Manual
Temp. Range (F)
50 to 180
Max. Head (Ft.)
50 ft
Product Description
Self-Priming Flexible-Impeller Pumps
- Replaceable impellers
- No metal-to-metal contact. Excellent for fluid transfer, spraying, lawn/garden applications, filter systems, water drainage, and machine/equipment coolant recycling.
- Note: Not to be run in a dry condition.
- Dayton®
- Max. temp.: 180°F 1725 rpm motors (Nos. 3ACA9 to 3ACB2 do not include motors)
- Can be used with nonabrasive fluids in a wide range of commercial, industrial, and agricultural applications. Bronze pedestals can be easily installed with a capacitor-start electric motor with sufficient starting torque.
