SQUARE D

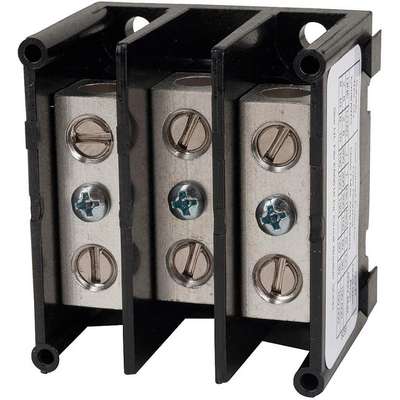

Square D Miniature Distribution Block, 115 Max. Amps, Number of Poles: 3
Hover over image to magnify
#917650-1 | Pkg Qty: 1
$24.94 pkg | $24.94 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
115 A
Power Distribution Block Design
Open
Brand
SQUARE D
Primary Connections/Pole
1
Depth
1.53 in.
Primary Wire Range
14 to 2 AWG
Item
Miniature Distribution Block
Secondary Connection/Pole
1
Length
2.29 in.
Secondary Wire Range
14 to 2 AWG
Maximum Amps
115
Shipping Weight
.2 lb.
Mfr. Part Number
9080LBA361101
Type
Miniature
Number of Poles
3
Voltage Rating
600 VAC
Package Quantity
1
Width
2.1 in.
General
For Conductor Material
Aluminum, Copper
Line Side Connection Type
Lug
For Line Aluminum Wire Size - Maximum
2 AWG
Line Side Wire Size Range
14 AWG – 2 AWG
For Line Aluminum Wire Size - Minimum
14 AWG
Load Connections/Pole
4
For Line Copper Wire Size - Maximum
2 AWG
Load Side Connection Type
Lug
For Line Copper Wire Size - Minimum
14 AWG
Load Side Wire Range
14 AWG – 2 AWG
For Load Aluminum Wire Size - Maximum
2 AWG
Maximum Current - Aluminum Conductor
90 A
For Load Aluminum Wire Size - Minimum
14 AWG
Maximum Current - Copper Conductor
115 A
For Load Copper Wire Size - Maximum
2 AWG
RoHS Compliant
Yes
For Load Copper Wire Size - Minimum
14 AWG
Standards
UL File E60616 XCFR2, CSA File 70361 6228-01, CE Marked
Line Connections/Pole
1
Terminal Material
Aluminum
Product Description
This efficient aluminum block splices cables or splits primary power into a wide range of secondary circuits and provides a fixed tap-off point. It accepts aluminum or copper wire, and saves splicing and taping time for contractor rework.
Item Barcode
Min Pwr Dist Blck,115A,3P,10-
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 2DD63 | Min Pwr Dist Blck,115A,3P, |
 | UNSPSC CODES | 39121410 | |
 | VMRS (ATA) CODES | 053-007-002 | Min Pwr Dist Blck,115A,3P, |
