NICHOLSON

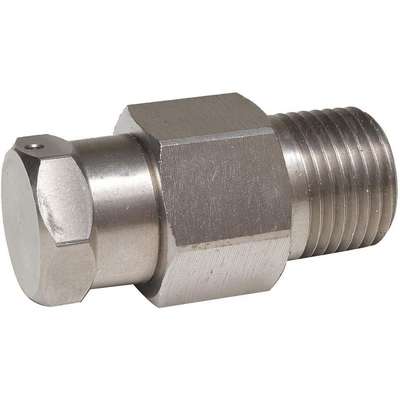

1/2" x 13/16" Atmospheric Vacuum Breaker, Steam Service, MNPT Connection Type
Hover over image to magnify
#917636-5 | Pkg Qty: 1
$202.60 pkg | $202.60 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
NICHOLSON
Maximum Temperature
350 deg. F
Connection Type
MNPT
Mfr. Part Number
VB0500-SS
Height
2-1/16 in.
Package Quantity
1
Item
Atmospheric Vacuum Breaker, Steam Service
Product Size
1/2 in.
Material
Stainless Steel
Shipping Weight
.26 lb.
Maximum Pressure
125 psi
Width
13/16 in.
General
Temp. Range
350 Degrees F
Product Description
Atmospheric Vacuum Breakers
- Max. pressure: 125 psi Max. temperature: 350°F MNPT connection For steam service
- Help protect plant and process equipment against vacuum conditions typically associated with cooling applications. Promote better heat transfer efficiency and allow condensate to be drained from steam systems. For use in heat exchangers, jacketed kettles, steam mains, and other process equipment.
Item Barcode
Atmospheric Vacuum Breaker,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6AWD6 | Atmospheric Vacuum |
 | UNSPSC CODES | 40141613 | |
 | VMRS (ATA) CODES | 053-008-004 | Atmospheric Vacuum |
