LITTLE GIANT

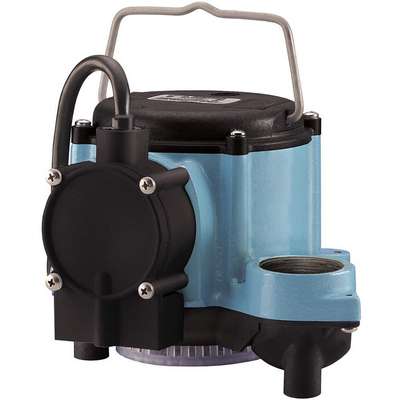

1/3 HP Submersible Sump Pump, Diaphragm Switch Type, Polypropylene Base Material

Hover over image to magnify
Submersible Sump Pump,1/3 Hp,1-
Submersible Sump Pump,1/3 Hp,1-

#917616-5 | Pkg Qty: 1

$246.54 pkg | $246.54 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Alarm
No
Item
Submersible Sump Pump
Alarm Included
No
Maximum Diameter Solids
1/8 in.
Amps
9 A
Maximum Head
18 ft.
Base Material
Polypropylene
Maximum Liquid Temperature
150°F
Brand
LITTLE GIANT
Mfr. Part Number
506160
Cord Length
8-1/2 ft.
NEC Cord Designation
SJTW
Diameter
7-1/4 in.
Pack Quantity
1
Discharge NPT
1-1/2 in. F
Pump Body Material
Cast Iron
Fits Brand
Little Giant
Pump HP
1/3
Gauge/Conductor
18/3
Shaft Seal
Carbon/Ceramic, Nitrile, Stainless Steel
Height
7-1/4 in.
Shaft Seal Material
Carbon, Ceramic, Nitrile, Stainless Steel
Horsepower
1/3
Shipping Weight
18.55 lb.
Housing
Cast Iron
Sump Pump Item
Submersible Sump Pump
Housing Material
Cast Iron
Switch Type
Diaphragm
Hz
60 HZ
Voltage
120 VAC
Impeller Material
Nylon
General
Discharge Dia.
1 1/2 in
Nominal Voltage
110 V AC
Discharge Gender
Female
Rated Voltage
120V AC
Discharge Standard
NPT
Shaft Seal Material - Pumps
Carbon, Ceramic, Nitrile, Stainless Steel
For Use With Mfr. Model Number
WRSC-6
Switch Actuation
Diaphragm
Max. Liquid Temp.
150 Degrees F
Switch Electrical Connection
Integral

Product Description

These 110V submersible sump pumps have a cast-iron body that helps dissipate heat as the pump drains water from sump pits. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug. Pumps have a painted or powder-coated finish to protect the body from corrosion.
