INTERMATIC

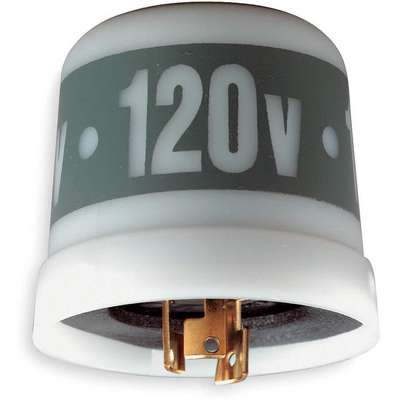

Intermatic Photocontrol, 120 to 277VAC Voltage, 2300 Max. Wattage, Locking Mounting
Hover over image to magnify
#917587-6 | Pkg Qty: 1
$37.10 pkg | $37.10 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
INTERMATIC
Maximum Incandescent Amps
15
Color Family
Gray / White
Maximum Wattage
2300
Contact Form
SPST
Mfr. Part Number
LC4536C
Depth
3 in.
Mfr. Warranty Length
2 yr.
Description/Special Features
Built in Delay
Mounting
Locking
Enclosure Type
Raintight
NEMA Rating
Not Rated
Foot Candles Off
15
Pack Quantity
1
Foot Candles On
1/2
Setting
Dusk to Dawn
Housing Material
Polypropylene
Shipping Weight
.2 lb.
Item
Photocontrol
Temperature Range
-40 deg. F to 158 deg. F
Length
2-3/4 in.
Voltage
120 to 277 VAC
Maximum Ballast Amps
8.3
Width
3 in.
General
For Use With
Parking Lot Lighting, Area Lighting, Car Lot Lighting, Security Lighting, Billboard Lighting, Municipal Lighting, Roadway Lighting, Street Lighting
Special Features
Built in Delay
Includes
Locking Nut, Washer Gasket
Standards
CSA, UL
Product Description
Designed for outdoor use, this commercial-grade thermal photo control features a built-in delay to prevent false cycling due to car headlights and lightning. It also features a cadmium-sulfide photocell and sonic-welded polycarbonate case and lens.
