TRILOGY BY ALARM LOCK

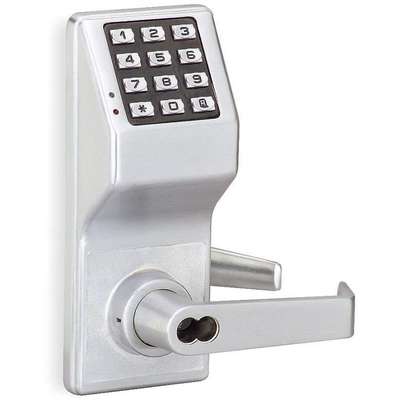

Electronic Keyless Lock, 2-3/4" Backset, Cylindrical, Satin Chrome, 1-5/8" to 1-7/8" Door Thickness

Hover over image to magnify
Electronic Lock,Satin Chrome,
Electronic Lock,Satin Chrome,

#917586-5 | Pkg Qty: 1

$871.59 pkg | $871.59 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
ADA Compliance
Yes
Item
Electronic Keyless Lock
Backset
2-3/4 in.
Ligature Resistant
No
Battery Life
120,000 Cycles
Lock Style
Zinc Alloy
Brand
TRILOGY BY ALARM LOCK
Mfr. Part Number
DL2700IC US26D
Door Plate Thickness
1-5/8 in. to 1-7/8 in.
Mounting Style
Cylindrical
Finish
Satin Chrome
Number of Keys
0
Fire Rating
3 hr.
Operating Temperature Range
-31 deg. F to 151 deg. F
Function
Office with Key Override
Outside Height
8 in.
Grade
1
Outside Width
3-1/4 in.
Hand
Nonhanded
Power Source
(5) AA Batteries
Handle Type
Lever
Series
DL2700
Inside Depth
1-11/16 in.
Shipping Weight
7.3 lb.
Inside Height
8-1/4 in.
Weather Resistant
No
Inside Width
3-1/4 in.
General
ADA Compliant
Yes
Lock Material
Zinc Alloy
Access Method
Keypad
Max. User Codes
100
Door Thickness
1-5/8 in to 1-7/8 in
Operating Temp. Range
-31° to 151°F
Electrical/Mechanical
Electrical
Timed Entry Allowance
5 to 20 sec
Key Override Options
Small Format Interchangeable Core
Timed Entry Allowance (Sec.)
5 - 20
Keypad
Self-contained, Fully Programmable 12-digit Metal

Product Description

The ALARM LOCK Trilogy® electronic keyless programmable lock easily replaces keyed locks. Compatible with most doors that have a standard knob set. Fingertip-programmable keypad allows up to 100 3- to 5-digit codes. Create a 3-tiered hierarchy of custom codes: 1 master, 10 managers, 90 standard codes, and three 1-time-use codes. Low battery alert. Easy to install. Key override. Visual and audible entry indicators.
