UNIWELD

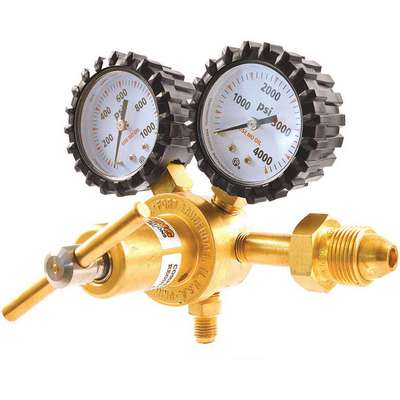

Uniweld RHP Series Specialty Gas Regulator, 50 to 800 psi, Nitrogen
Hover over image to magnify
#917550 | Pkg Qty: 1
$204.68 pkg | $204.68 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Maximum Inlet Pressure
3000 psi
Brand
UNIWELD
Mfr. Part Number
RHP800
Cylinder Gas
Nitrogen
Outlet Connection
1/4 in. Tube
Delivery
50 to 800 psi
Overall Length
9-1/8 in.
Delivery Pressure Range
50 to 800 psi
Package Quantity
1
Diaphragm Material
Neoprene
Regulator Capacity
Light to Heavy Duty
Gas Service
Nitrogen
Regulator Supply Type
Cylinder
Gauge Size
2 in.
Series
RHP
Gauges Delivery Pressure
1000 psi
Shipping Weight
2.65 lb.
Inlet Connection
CGA-580
Stages
Single Stage
Item
Gas Regulator
Supply Pressure Gauge
0 to 4000 psi
General
Application
Industrial
Maximum Gauge Outlet Pressure
4,000 psig
CGA Number
CGA 580
Mounting Type
Cylinder
Compatible Gas Type
Nitrogen
Number of Stages
Single Stage
Control Type
T-Handle
Outlet Connection Gender
Male
Gauge Diameter
2 in
Outlet Connection Size
1/4 in
Includes
Piston Actuated Seat for Durability, Steel Case Construction with Polycarbonate Lens
Outlet Connection Type
Flared
Inlet Connection Gender
Male
Outlet Pressure (Maximum)
800 psig
Inlet Connection Size
0.965"-14
Outlet Pressure (Minimum)
50 psig
Inlet Connection Type
NGO
Regulator Application
General Purpose
Inlet Pressure (Maximum)
3,000 psig
Regulator Series
RHP
Inlet Thread Direction
Right Hand
Product Description
Easy-To-Read 2 in Gauges With Steel Case Construction With Polycarbonate Lens, Fine Mesh Filter Screen Between Inlet and Seat, Piston Actuated Seat for Durability, Porous Metal Inlet Filter, Protective Rubber Gauge Boots
Expertly Selected Product Pairings
Item Barcode
Specialty Gas Regulator,50 To
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 39DM34 | Specialty Gas |
 | UNSPSC CODES | 40142201 | |
 | VMRS (ATA) CODES | 053-006-009 | Specialty Gas |
