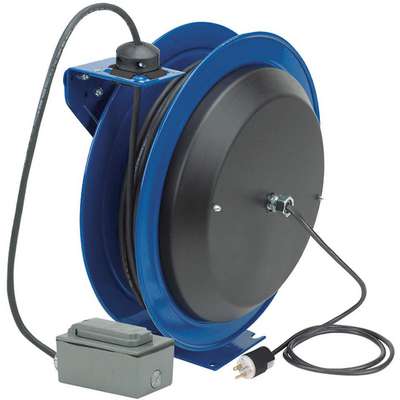

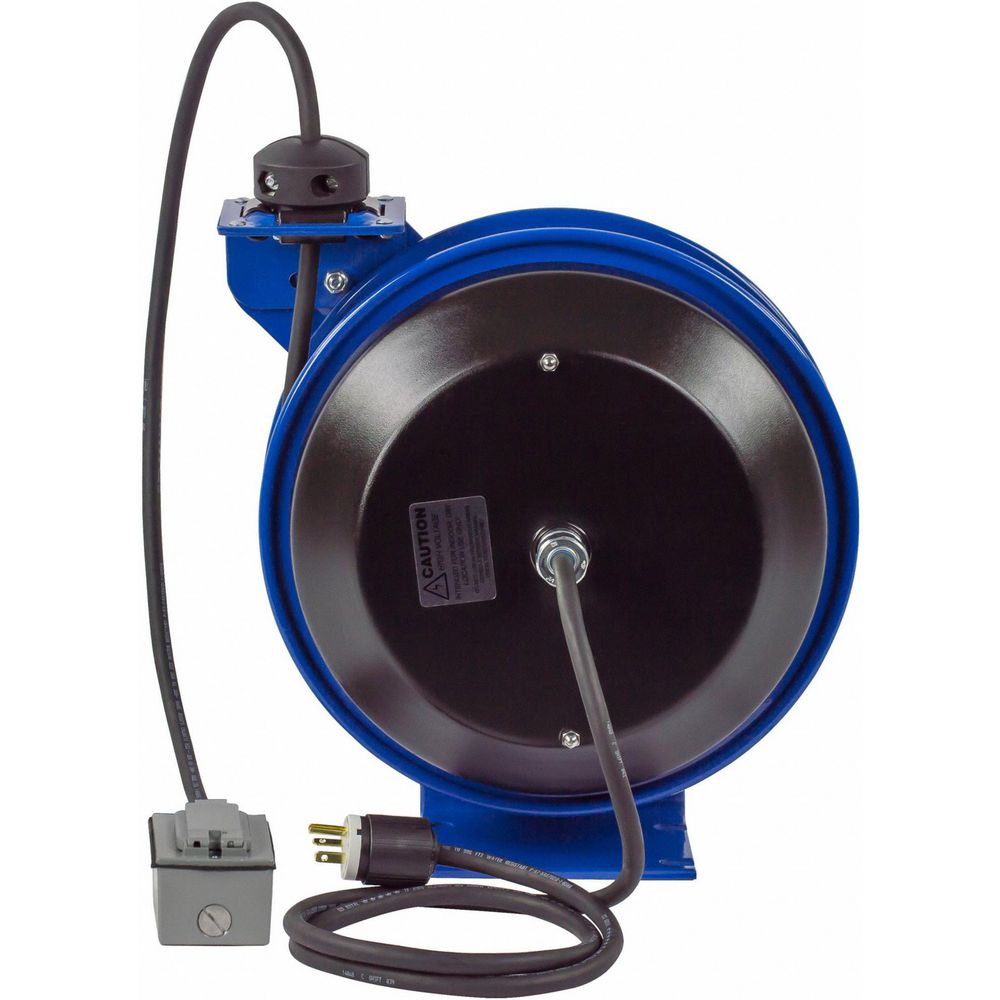

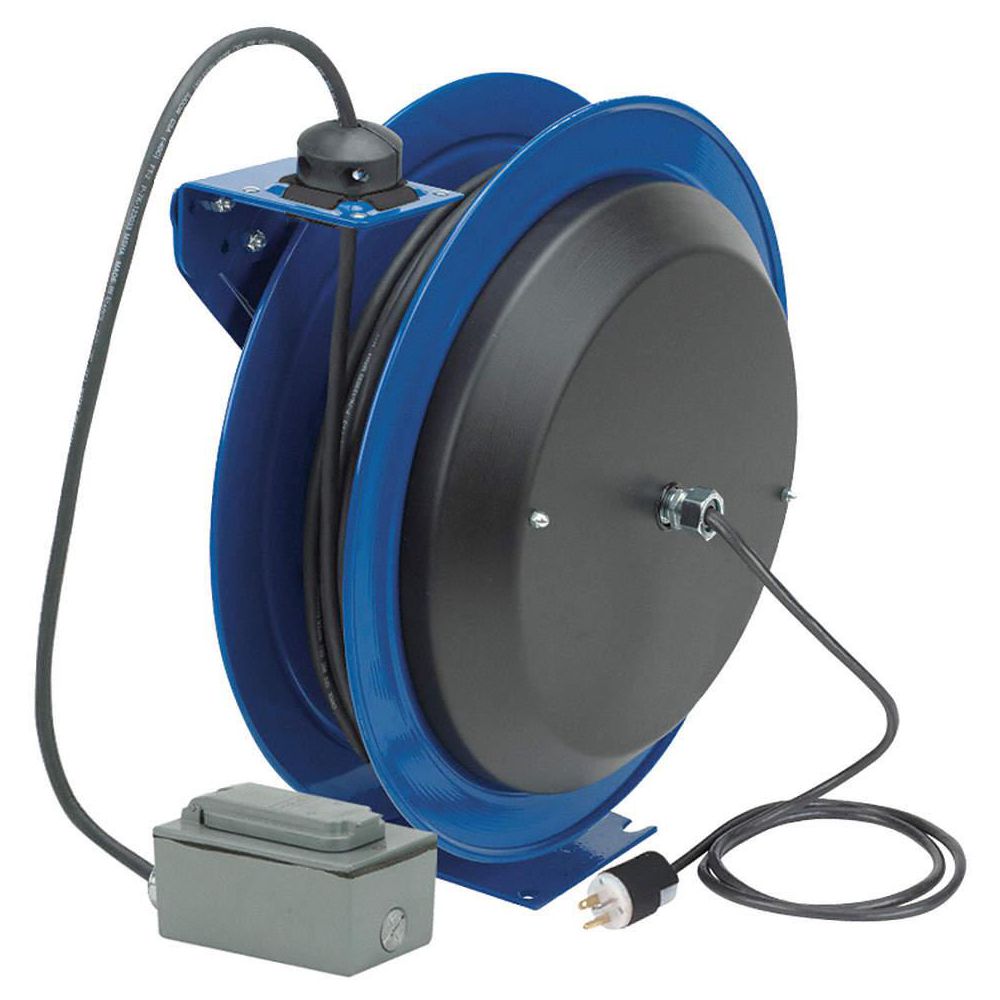

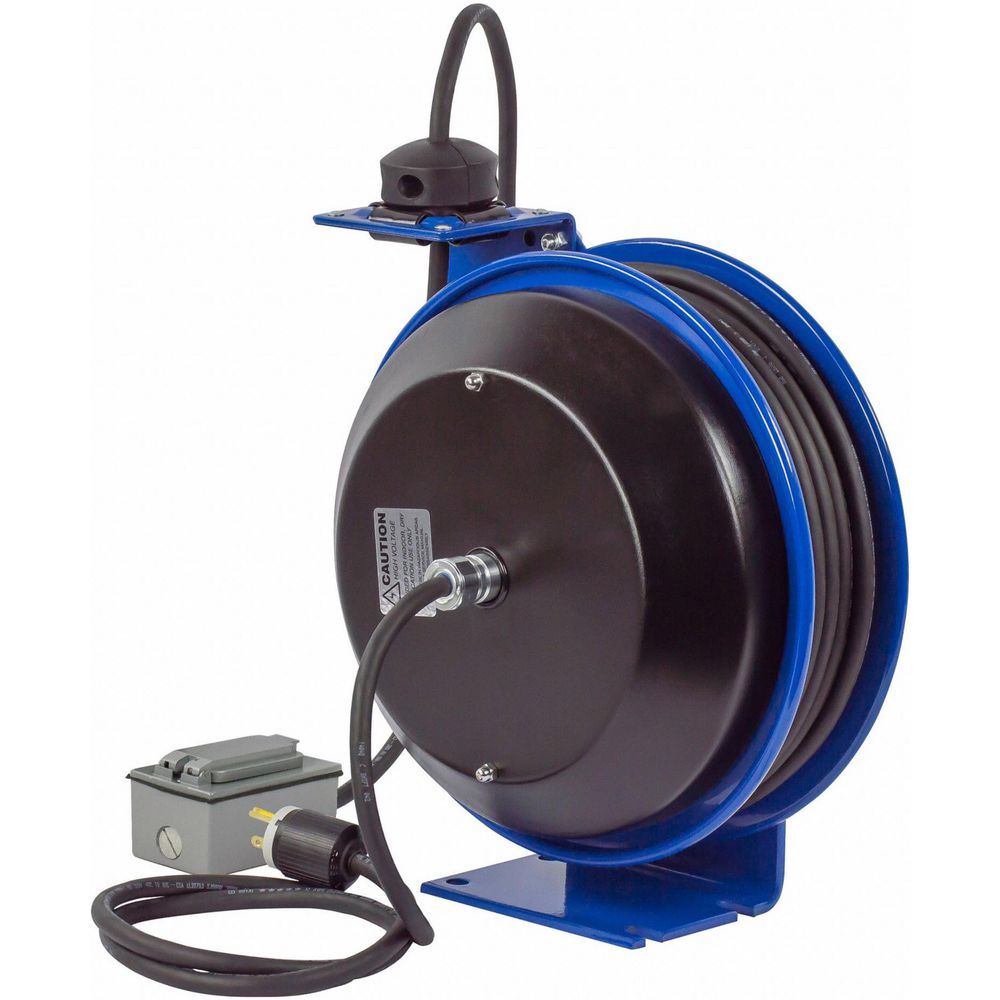

Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color

Hover over image to magnify
Cord Reel,100 Ft,12/3,Sjo,Blue,
PI_Asset_948352
PI_Asset_980354
PI_Asset_980355
PI_Asset_980356
PI_Asset_980358
PI_Asset_980359
Cord Reel,100 Ft,12/3,Sjo,Blue,
PI_Asset_948352
PI_Asset_980354
PI_Asset_980355
PI_Asset_980356
PI_Asset_980358
PI_Asset_980359
Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Coxreels 100 ft. Retractable Cord Reel; Heavy Industrial Grade; 120 VAC; Blue Reel Color Video
Double tap image to magnify
Cord Reel,100 Ft,12/3,Sjo,Blue,
9175424_1
980354_1
980355_2
980356_3
980358_5
980359_1
Cord Reel,100 Ft,12/3,Sjo,Blue,
9175424_1
980354_1
980355_2
980356_3
980358_5
980359_1
CYPC-kE7VWU
I_93xdw6i5k
SX6FO_rSJrI
a4gQgpg9bxU
e5gDjGrQCk4
h9xLIeWQtq0

#917542-4Pkg Qty: 1

$1,574.84 pkg | $1,574.84 ea
This item requires special shipping, additional charges may apply.

In Stock

Shipping to 43085
Expected to arrive Mon. Mar 31.
|

Technical Specifications

Key Specifications
Brand
COXREELS
NEC Cord Designation
SJO
Cord Color
Black
NEMA Configuration
5-20R
Cord Ending
5-20R
NEMA Connector
5-20R
Cord Ending NEMA Configuration
5-20R
NEMA Plug Configuration
5-20P
Cord Included
Yes
Number of Conductors
3
Cord Length
100 ft.
Number of Outlets
2
Cord Type
SJO
Overall Depth
10-1/4 in.
Depth
10-1/4 in.
Overall Height
25-1/2 in.
Description/Special Features
GFCI Duplex Receptacle
Overall Width
24 in.
Enclosed Reel
No
Package Quantity
1
Enclosure Rating
Not Rated
Reel Color
Blue
Feeder Cord Ending
Grounding Plug
Reel Material
Steel
Feeder Cord Ending NEMA Configuration
5-20P
Reel Mounting
Bench, Ceiling, Floor, Wall
Feeder Cord Length
5 ft.
Shipping Weight
83 lb.
Grade
Heavy Industrial
Slip Ring Rating
115 V
Height
25-1/2 in.
Type
Spring Retractable
Indoor/Outdoor
Indoor
Voltage
120 VAC
Item
Retractable Cord Reel
Watts
2300 W
Maximum Amps
20
Width
24 in.
Mfr. Part Number
PC24-0012-F
Wire Size
12 AWG
General
Feeder Cord Ending Configuration
NEMA 5-20P
Retractable Cord Ending Configuration
NEMA 5-20R
Gauge/Conductor - Ext. Cords and Outlet Strips
12/3
Tension Method
Ratchet Lock
Includes Cord
Yes
Voltage - Ext. Cords and Outlet Strips
120VAC
Max. Amps - Ext. Cords and Outlet Strips
20.0
Winding Method
Spring Retraction
Retractable Cord Ending
Duplex GFCI Box Receptacle

Product Description

Self-retracting cord reels have a spring mechanism that automatically winds the cord back on the reel, making them easier to use than hand-winding cord reels. A stop, or ratchet, holds the cord at the desired length after it's pulled out for use. A quick tug on the cord disengages the stop, causing the spring to fully retract the cord. These reels provide access and storage of extension cords while protecting the cord from wear, tangling, and kinking.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.
