WILTON

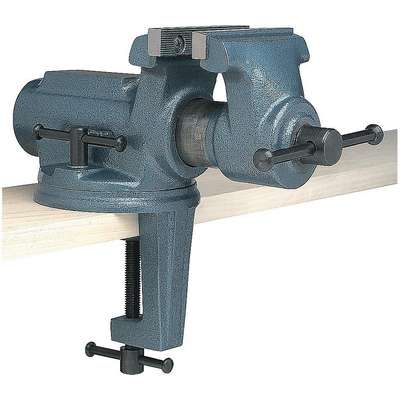

Wilton Standard Duty Portable Vise, 4" Jaw Width, 2-1/4" Max. Opening, 2" Throat Depth
Hover over image to magnify
#917540 | Pkg Qty: 1
$202.36 pkg | $202.36 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bench Vise Base Type
Clamp-On Swivel
Number of Mounting Points
1
Bench Vise Duty Rating
Standard Duty
Overall Height
10-1/8 in.
Brand
WILTON
Overall Length
10 in.
High Visibility
No
Overall Width
5-3/8 in.
Item
Portable Vise
Package Quantity
1
Jaw Face
Serrated
Pipe Jaw Included
Yes
Jaw Type
Replaceable
Quick Acting
No
Jaw Width
4 in.
Reversible
No
Material
Ductile Iron
Shipping Weight
15 lb.
Maximum Opening
2-1/4 in.
Swivel Angle
45 deg.
Mfr. Part Number
CBV-100
Tensile Strength
36259 psi
Number of Lock Down Bolts
2
Throat Depth
2 in.
General
Base Type - Vises
Clamp-On Swivel
Material -Vises
Ductile Iron
Body Casting Tensile Strength
36,259 psi
Max. Opening - Vises
2 1/4 in
Duty Rating - Vises
Standard Duty
Max. Opening Range
Less than 3 in
Features
Steel Top Jaw, Enclosed Design
Product Grouping - Vises
Bench Vises
Jaw Face - Vises
Serrated
Swivel Angle - Vises
45 Degrees
Jaw Width - Vises
4 in
Throat Depth - Vises
2 in
Jaw Width Range
3 in to 5 in
Throat Depth Range
Less than 3 in
Product Description
This portable vise features lock-down bolts that attach directly to the work bench. It is ideal for very light-duty work with smaller workpieces. It can be positioned vertically and horizontally. It can also be removed after use to save valuable space or to transport to another work location.
Expertly Selected Product Pairings
Item Barcode
Portable Vise,Clamp-On Swivel,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5LK41 | Portable Vise,Clamp- |
 | UNSPSC CODES | 27112102 | |
 | VMRS (ATA) CODES | 053-006-009 | Portable Vise,Clamp- |
