BAILEIGH INDUSTRIAL

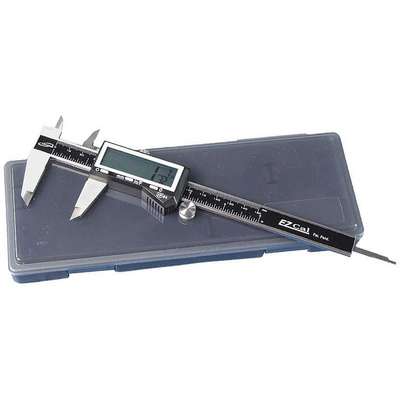

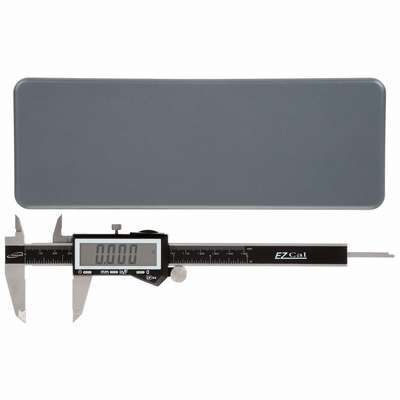

Baileigh Industrial Fractional Digital Caliper 0-6"/0-150mm Range, 0.0005"/0.01mm Resolution, Stainless Steel

Hover over image to magnify
Fractional Digital Caliper,Hss,
PI_Asset_1356012
Fractional Digital Caliper,Hss,
PI_Asset_1356012

#917535-4 | Pkg Qty: 1

$49.32 pkg | $49.32 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Absolute Positioning
Yes
Material
Stainless Steel
Accuracy
±0.0015 in./0.03mm
Mfr. Part Number
B-MEASUREDC
Brand
BAILEIGH INDUSTRIAL
Package Quantity
1
Calibration Certificate
No
Range
0-6 in./0-150 mm
Caliper Material
Stainless Steel
Resolution
0.0005 in./0.01mm
Caliper Range
0-6 in./0-150mm
SPC Output
No
IP Rating
54
Shipping Weight
.65 lb.
Item
Fractional Digital Caliper
General
Battery Size
CR2032
Maximum Measurement - Inch
6 in
Depth Rod Shape
Rectangular
Maximum Measurement - mm
150 mm
Dust Resistant
Yes
Measurements
4-Way
Features
Rolling Thumb Wheel, Control Buttons on Face, Zero, On/Off and Inch/mm, Absolute Scales
Measures Depth
Yes
Graduations - Lower Scale
0.0005 in
Measures Inside Dimension
Yes
Graduations - Upper Scale
0 in to 6 in
Measures Outside Dimension
Yes
Included Certification
Certificate of Calibration
Measures Step
Yes
Includes Battery
Yes
Minimum Measurement - Fractional Inch
0 in
Includes Case
Yes
Minimum Measurement - Inch
0 in
Jaw Actuation Type
Thumb Wheel
Minimum Measurement - mm
0 mm
Jaw Shape
Standard
With Locking Nut
Yes

Product Description

These IP54-rated fractional display calipers resist splashes of water from any direction. They have a linear encoder for performing measurements with an LCD that displays measurements in 1/64” increments with inch and metric resolution. These calipers do not have SPC output capability. They are commonly used in carpentry applications and for the production of parts and products with precise fractional dimensions.
