TJERNLUND

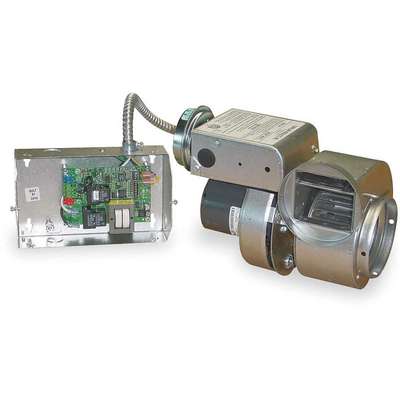

Tjernlund Induced Draft Blower, High Temperature, 6 Inlet and Outlet Dia., 115 Voltage, 1.51 Amps

Hover over image to magnify
Blower,Induced Draft
Blower,Induced Draft

#917532-9 | Pkg Qty: 1

$666.86 pkg | $666.86 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
ETL Listed to UL378 and CAN3-B255-M81
Mfr. Part Number
HS2
Brand
TJERNLUND
Package Quantity
1
Depth
8-1/2 in.
Shipping Weight
16.1 lb.
Height
9-1/4 in.
Voltage
115
Item
Induced Draft Blower
Width
11-1/2 in.
Material
Aluminized Steel Housing and Blower Wheel
General
BtuH Input
300-450
Duct Temp. Deg. (F)
70300400500
CFM @ 0.000-In. SP
280 280 280 280
Includes
Adjustable Damper, Fan Proving Switch, UC1 Interlock Control, Vibration Isolators
CFM @ 0.500-In. SP
235 220 215 200
Inlet and Outlet Dia. (In.)
6
CFM @ 0.700-In. SP
220 190 185 165
Remarks
View Catalog Page For Selection Criteria
CFM @ 1.000-In. SP
200 150 120
Vent Pipe Dia. (In.)
6 or 8
CFM @ 1.40-In. SP
150

Product Description

Mechanically vents Category 1 heaters through a wall, eliminating the need for a traditional chimney. Interlocks with any 24/120VAC burner circuit. Features adjustable pre/post purge, LED status indicators, and fault code memory. Unit is ideal for sidewall vent furnaces, boilers, water heaters, pool heaters, and unit heaters. Use for electric to gas conversions, heating equipment upgrades, new construction, and replacing chimneys.
