DAYTON

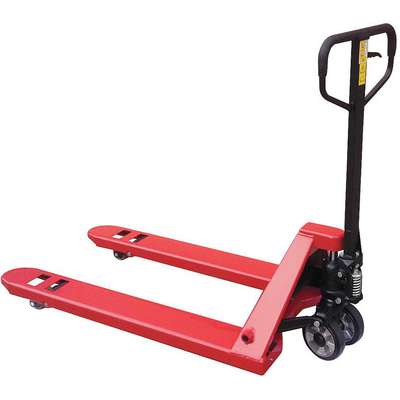

Dayton Standard Quiet Manual Pallet Jack, 5500 lb. Load Capacity, Fork Size: 6-5/16"W x 48"L, Red

Hover over image to magnify
Pallet Truck,5500 Lb.,Quiet,
PI_Asset_976211
PI_Asset_976212
PI_Asset_976213
PI_Asset_976214
PI_Asset_976215
PI_Asset_976216
PI_Asset_976217
Pallet Truck,5500 Lb.,Quiet,
PI_Asset_976211
PI_Asset_976212
PI_Asset_976213
PI_Asset_976214
PI_Asset_976215
PI_Asset_976216
PI_Asset_976217

#917526-8 | Pkg Qty: 1

$495.45 pkg | $495.45 ea
This item requires special shipping, additional charges may apply.

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Bearings
Sealed Ball
Load Center
24 in.
Brand
DAYTON
Mfr. Part Number
32HD11
Color Family
Red
Operation
Manual
Construction
Steel
Overall Height
48 in.
Finish
Powder Coated
Overall Length
63 in.
Fork Height Lowered
2-15/16 in.
Overall Width
27 in.
Fork Height Raised
7-1/2 in.
Package Quantity
1
Fork Length
48 in.
Roller Diameter
2-7/8 in.
Fork Width
6-5/16 in.
Shipping Weight
164 lb.
Handle
Cushion Grip
Steering Arc
190 deg.
Item
Pallet Jack
Style
Standard
Key Pallet Jack Feature
Quiet
Wheel Material
Rubber
Lifting Height Maximum
7-1/2 in.
Width Across Forks
27 in.
Lifting Height Minimum
2-15/16 in.
Width Between Forks
14-3/8 in.
Load Capacity
5500 lb.
General
Assembled
Yes
Load Wheel Diameter
2 7/8 in
Features
Quiet - Less Than 60dBs
Load Wheel/Tread Material
Polyurethane
For Pallet Type
Open/Closed
Main Wheel Size
7 in
For Surface Type
Concrete
Overall LxWxH
63 in x 27 in x 48 in
Fork LxW
48 in x 6 5/16 in
Pallet Jack Operation
Manual
Fork Style
Standard
Pallet Jack Style
Standard
Fork Type
Fixed
Roller Dia.
2 7/8 in
Grease Fittings
(2) Internal, (7) Bushing
Steer Wheel Diameter
7 in
Lifting Height Max.
7-1/2"
Steer Wheel/Tread Material
Rubber
Lifting Height Min.
2-15/16"
Strokes to Maximum Lift Height
12
Load Wheel Bearing Type
Ball Bearing
Wheel Base
49 1/2 in

Product Description

These manual pallet jacks use sound-deadening materials, quiet-roll wheels and load rollers, and specially designed bushings in the pump assembly to limit the noise that is created by the pallet jacks to less than 60dB. They are used in areas where noise levels must be strictly controlled to avoid disturbing or harming patients, customers, or workers, such as retail stores, grocery stores, hospitals, medical facilities, warehouses, and industrial facilities.
