DAYTON

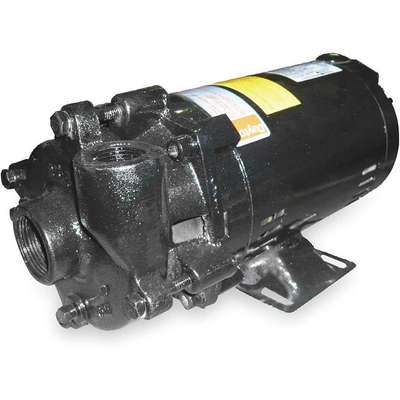

120/240 VAC Open Dripproof Centrifugal Pump, 1-Phase, 1" NPT Inlet Size

Hover over image to magnify
Pump,Centrifugal, 1/3 Hp, 1 Ph,
Pump,Centrifugal, 1/3 Hp, 1 Ph,

#917521-4 | Pkg Qty: 1

$350.29 pkg | $350.29 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
c UL us
Maximum Head
44
Amps
7.5/3.8 A
Maximum Liquid Temperature
200°F
Bearing Type
Ball
Maximum Pressure
19.04 psi
Bearings
Ball
Maximum Specific Gravity
1
Best Efficiency GPM @ Head
30 gpm @ 26 ft.
Mfr. Part Number
2ZWN9
Best Efficiency Range GPM @ Head
29 to 18 gpm @ 25 to 37 ft.
Mfr. Warranty Length
1 yr.
Brand
DAYTON
Minimum GPM @ Head
10 gpm @ 40 ft.
Drain Plug
Easily Accessible, 2 Position
Motor Enclosure
ODP
Duty
Continuous
Motor RPM
3450
Duty Cycle
Continuous
Motor Type
Capacitor Start
Frame
56J
NEMA/IEC Frame
56J
GPM of Water @ 10 Ft. of Head
41
Number of Port Positions
4 Position
GPM of Water @ 15 Ft. of Head
37
Outlet Size
3/4 in. NPT
GPM of Water @ 20 Ft. of Head
34
Package Quantity
1
GPM of Water @ 25 Ft. of Head
29
Phase
1
GPM of Water @ 30 Ft. of Head
25
Port Rotation
4 Position Increments
GPM of Water @ 40 Ft. of Head
10
Pump Length
13 in.
Height
5-7/8 in.
Pump Size
1 in. X 3/4
Horsepower
1/3
Screw Material
Steel, Zinc Plated
Housing Material
Cast Iron
Seal Application
Long Life When not Run Dry or Pumping Abrasives
Hz
60
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Impeller Material
Cast Iron
Seal Type
Mechanical
Impeller Type
Semi Open
Service Factor
1-3/4
Inlet
1 in. NPT
Shaft Material
Stainless Steel
Inlet Pressure
200 psi
Shaft Size
5/8 in.
Item
Straight Centrifugal High Flow Pump
Shipping Weight
33.14 lb.
Length
13 in.
Type
Centrifugal
Liquid Compatibility
Nonflammable, Non Abrasive
Voltage
120/240 VAC
Maximum Case Pressure
200 psi
Volute Material
Cast Iron
Maximum Diameter Solids
23/64
Wetted Materials
Cast Iron, Buna-N, Carbon, Ceramic, Stainless Steel
Maximum Fluid Viscosity
100 SSU
Width
5-7/8 in.
Maximum GPM @ Head
41 gpm @ 10 ft.
General
Application
Suitable for general transfer, boiler feed, condensate return, water circulation, irrigation, cooling towers, filtration, and pressure boosting.
Intake Type
NPT
Best Efficiency Flow
30 gpm
Intake and Discharge Size
1 in , 3/4 in
Best Efficiency Head
26 ft
Manufacturer Warranty Length
1 yr
Compatible Discharge Pipe Size
3/4 in
Maximum Feet of Head
40 ft
Compatible Intake Pipe Size
1 in
Maximum Media Temperature
200 Degrees F
Discharge Rotation
90 Degrees Increments
Motor Enclosure Type
ODP
Discharge Type
NPT
Motor Frame Designation
56J
Flow Rate @ 10 ft of Head (Maximum)
41 gpm
Nameplate Voltage
115/230V AC
Flow Rate @ 15 ft of Head (Maximum)
37 gpm
Nominal Voltage
115/230V AC
Flow Rate @ 20 ft of Head (Maximum)
34 gpm
Pump Housing Material
Cast Iron
Flow Rate @ 30 ft of Head (Maximum)
25 gpm
Shut Off Pressure (Maximum)
19 psi
Flow Rate @ 40 ft of Head (Maximum)
0 gpm
Solid Diameter (Maximum)
0.36 in
For Use With
Non-Flammable and Non-Abrasive Liquids Compatible with Pump Component Materials
Specific Gravity (Maximum)
1
Impeller Design
Semi-Open
Wetted Material
Buna-N, Carbon, Cast Iron, Ceramic, Stainless Steel
Includes
Manual

Product Description

Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
