OMRON

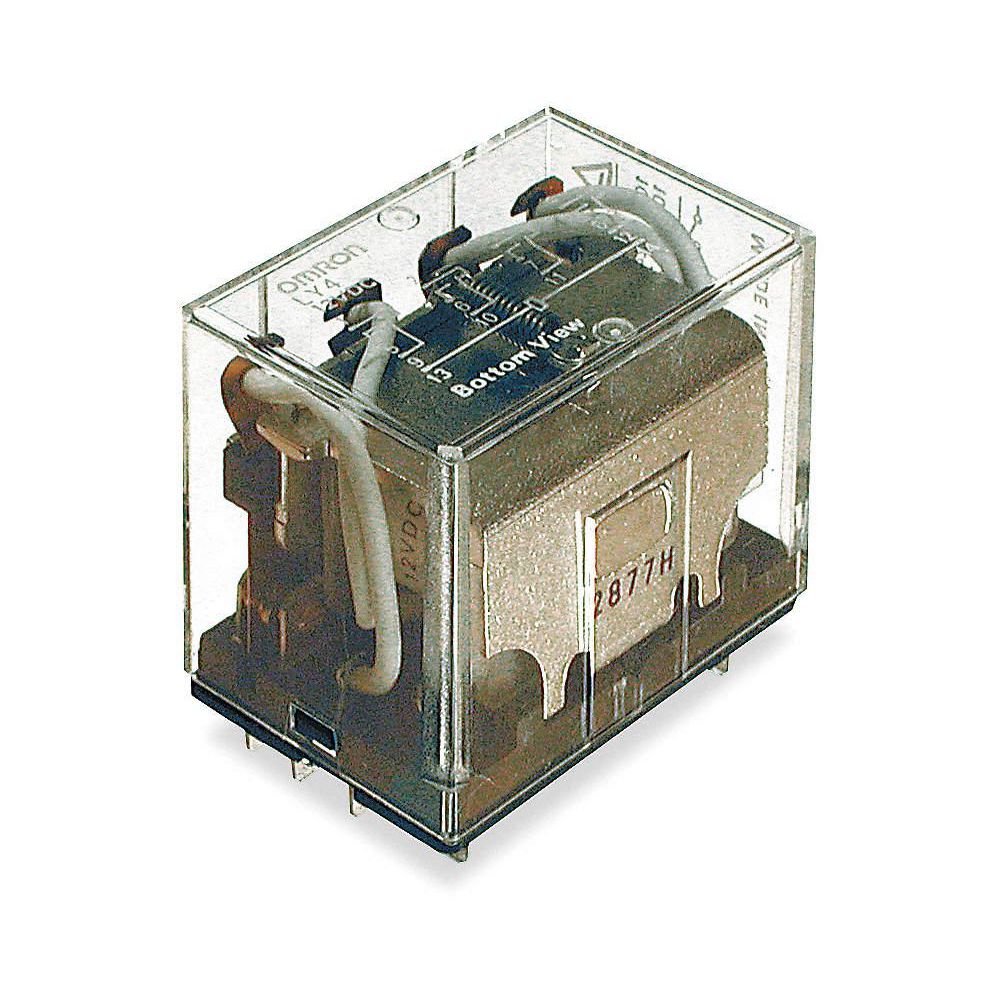

Omron 24VDC Coil Volts, General Purpose Relay, 10A @ 120VAC/10A @ 24VDC Contact Rating, Square
Hover over image to magnify
#917517-6 | Pkg Qty: 1
$19.23 pkg | $19.23 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Contact Rating
10 A @ 120 V
Mounting
Plug In
Base Type
Square
Number of Pins
14
Body Depth
1.1 in.
Number of Poles
4
Body Height
1.42 in.
Overall Height
1.69 in.
Body Width
1.63 in.
Package Quantity
1
Brand
OMRON
Pins
14
Coil VA Rating
1-1/2
Plug-In Relay Style
General Purpose
Coil Volts
24 VDC
Push To Test
Manual
Contact Amp Rating
7-1/2
Relay Power Consumption
1.5 W
Contact Form
4PDT
Resistive Contact Amp Rating
10
Contact Material
Silver Alloy
Response Time
25 msec
Contact Rating
10 A @ 120 VAC/24 VDC
Shipping Weight
.14 lb.
DC Contact Rating
10 A @ 24 V
Socket
Mfr. No. PTF14A
Inductive Contact Amp Rating
7-1/2
Socket Code
F
Input Power Consumption
1.5 W
Status Indicator
No
Item
General Purpose Relay
Type
Standard
Mfr. Part Number
LY4-DC24
General
AC Contact Rating - Relay
10A @ 120V
HP @ 120V
1/10 hp
Base Type - Plug In Relay
Square
HP @ 240V
1/2 hp
Body Depth - Relay
1.1 in
Mounting - Relay
Plug In
Body Height - Relay
1.42 in
Number of Pins - Relay
14
Body Width - Relay
1.63 in
Overall Height - Relay
1.69 in
Contact Form - Relay
4PDT
Power Consumption - Relay
1.5 W
DC Contact Rating - Relay
10A @ 24V
Socket Code - Relay
F
Features
Arc Barrier Equipped, High Dielectric Strength (2000VAC), Long Dependable Service Life Assured By Ag-Alloy Contacts
Standards
UL508
Product Description
General Purpose Relay, Coil Volts 24V DC, AC Contact Rating - Relay 10A @ 120V, DC Contact Rating - Relay 10A @ 24V, Base Type - Plug In Relay Square, Number of Pins - Relay 14, Contact Form - Relay 4PDT, Mounting - Relay Plug In, Socket Code - Relay F, Power Consumption - Relay 1.5 W, Contact Material Silver Alloy, Status Indicator No, Push To Test Manual
Expertly Selected Product Pairings
Item Barcode
Plug In Relay,14 Pins,Square,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 6C881 | Plug In Relay,14 |
 | UNSPSC CODES | 39122325 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug In Relay,14 |
