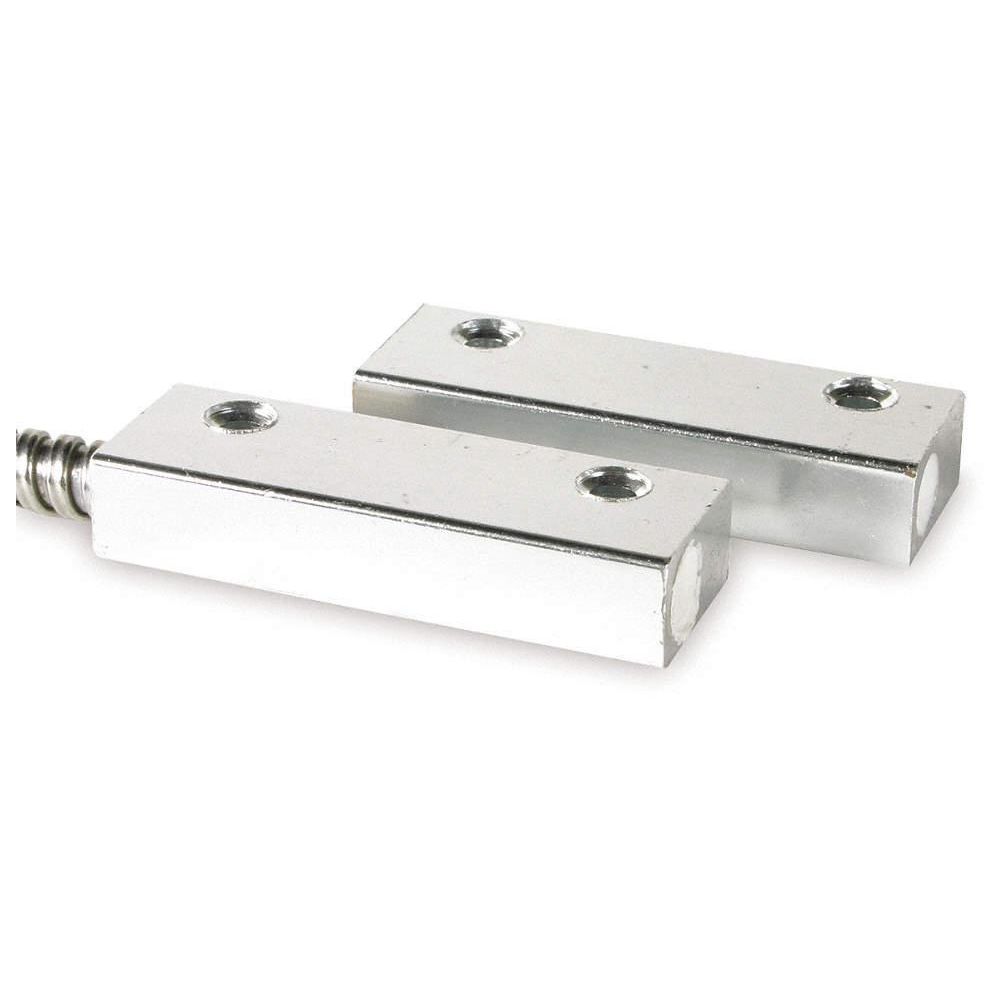

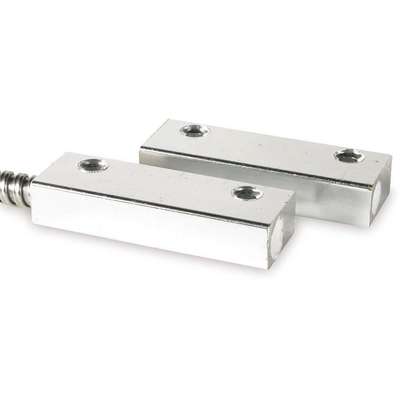

5/8" x 2" x 3/8" Metal Surface Mount Magnetic Contact

Hover over image to magnify
Magnetic Contact,Surface Mount,
Magnetic Contact,Surface Mount,
Double tap image to magnify
Magnetic Contact,Surface Mount,
Magnetic Contact,Surface Mount,

#917516-4Pkg Qty: 1

$53.79 pkg | $53.79 ea

In Stock

Shipping to 43085
Expected to arrive Wed. Apr 02.
|

Technical Specifications

Key Specifications
Brand
APPROVED SUPPLIER
Maximum Voltage
30 V
Height
3/8 in.
Mfr. Part Number
2EXU6
Item
Magnetic Contact
Mount
Surface
Lead Length
18 in.
Operating Temperature
-15 deg. F to 160 deg. F
Length
5/8 in.
Pack Quantity
1
Loop Configuration
Open or Closed
Shipping Weight
.2 lb.
Material
Metal
Width
2 in.
Maximum Current
0.2 A
General
Depth (In.)
5/8 in
Max. Current (Amps)
0.2
Electrical Configuration
SPDT
Max. Gap Distance (In.)
1 1/4 in
For Use With
Windows and Doors
Max. Voltage
30V DC/V AC
Height (In.)
3/8 in
Operating Temp. Range (F)
-15 to 160
Includes
Hardware
Response Time (Sec.)
0.5ms Max
Lead Length (In.)
18 in
Width (In.)
2 in
Length (In.)
5/8 in

Product Description

monitoring system when the door magnet moves away from the frame magnet. A gap between the contacts compensates for ill-fitting doors and windows opened for ventilation.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.

Item Barcode

9175164
Magnetic Contact,Surface Mount,
