THERMOID

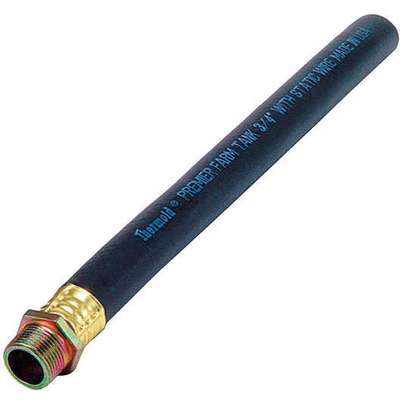

Farm Tank Gasoline Hose, Hose Tube Material NBR, Hose Cover Material Nitrile, Hose Fittings MNPT

Hover over image to magnify
Gasoline Hose,3/4 In. I.D.,8
PI_Asset_1507994
Gasoline Hose,3/4 In. I.D.,8
PI_Asset_1507994

#917510-3 | Pkg Qty: 1

$79.10 pkg | $79.10 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
THERMOID
Length
8 ft.
Color Family
Black
Meets
RMA Class A, UL Listed
Configuration
Coupled Assembly
Mfr. Part Number
667212208
Cover Material
NBR Blend
Outside Diameter
1-1/8 in.
Fitting Material
Aluminum
Package Quantity
1
Fitting Type
(M)NPT
Reinforcement
(2) Spiral Fabric
Inside Diameter
3/4 in.
Shipping Weight
3.65 lb.
Item
Farm Tank Gasoline Hose
Tube Material
NBR
General
Compatible Chemicals
Gasoline
Hose Fitting B Size
3/4 in
For Media Type
Gasoline
Hose Fitting B Type
MNPT
Hose Configuration
Coupled Assembly
Hose Fittings
Aluminum 3/4 in MNPT x Aluminum 3/4 in MNPT
Hose Cover Material
Nitrile
Hose Outside Dia.
1 1/8 in
Hose Fitting A Material
Aluminum
Hose Tube Material
NBR
Hose Fitting A Size
3/4 in
Max. Working Pressure @ 70 F
60 psi
Hose Fitting A Type
MNPT
Not Recommended Chemicals
Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Fuel Oil, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Lacquer Thinners, Lubricated Air, Methyl Chloride, Mineral Oil , Motor Oil, Naphtha, Paint, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Solvents, Steam, Stoddard Solvent (Mineral Spirits), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Toluene, Trichlorethylene (50%), Turpentine, Vegetable Oil, Xylene
Hose Fitting B Material
Aluminum
Temp. Range
-20 Degrees to 160 Degrees F

Product Description

These nitrile gasoline hose assemblies with nitrile/PVC (polyvinyl chloride) cover are designed for dispensing gasoline, kerosene, and oils from farm or barrel-type pumps in agricultural, industrial, and construction applications . Also known as farm-tank gasoline hose, these hoses resist abrasion and oils, and they have a static wire that dissipates static charge on the hose to help prevent sparks that can ignite fumes or material inside the hose. The hoses are reinforced with dual-spiral, high-tensile polyester cord for strength. They are not for use in service-station or aircraft-refueling applications.

Gasoline hose assemblies are designed for dispensing gasoline. These hose assemblies come with fittings installed on both ends for connecting the hose to compatible equipment.
