DAYTON

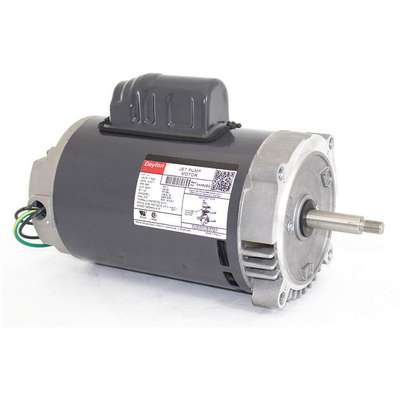

Dayton 1 HP Jet Pump Motor, Capacitor-Start, 3450 Nameplate RPM, 115/230 Voltage, 56J Frame
Hover over image to magnify
#917490-5 | Pkg Qty: 1
$266.36 pkg | $266.36 ea
Unavailable
Shipping to 60045
Technical Specifications
Key Specifications
Bearings
Ball
Mounting
Face
Brand
DAYTON
Mounting Position
Vertical (Shaft Down) or Horizontal
Design
Single Compartment
NEMA/IEC Frame
56J
Enclosure
Open Dripproof
Nameplate RPM
3450
Finish
Gray
Package Quantity
1
Frame
56J
Phase
Single
Full Load Amps
13.4/6.7
Rotation
CCWSE
Hz
60
Service Factor
1.4
Insulation Class
B
Shaft Length
2-9/16 in.
Item
Jet Pump Motor
Shaft Type
Threaded
Mfr. Part Number
5K662
Shipping Weight
20 lb.
Motor Design
Capacitor-Start
Thermal Protection
Auto
Motor Type
Capacitor-Start
Voltage
115/230 VAC
General
Body Dia.
5.6 in
Motor Service Factor
1.4
HP
1
Motor Shaft Design
Threaded
Includes
Dripcover Kit for Vertical Mounting, Water Slinger
Motor Shaft Rotation
CCWSE
Ins. Class
B
Motor Sub Application
Jet Pump
Max. Ambient Temp.
40 °C
Motor Thermal Protection
Auto
Motor Application
Pump
Nominal Efficiency
68.7 %
Motor Bearings
Ball
RPM Range
3,001-3,600
Motor Efficiency Group
Standard Efficient
Shaft Dia.
5/8 in
Motor Enclosure Design
Open Dripproof
Standards
CSA Certified (258501), UL Recognized (E37403)
Motor Mounting Position
Horizontal, Vertical Shaft Down
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Mounting Type
Face
Product Description
Capacitor-start jet pump AC motors use a capacitor to provide additional power during startup for higher starting torque. This higher torque allows these single-phase motors to move heavier loads at lower speeds.
