HUBBELL WIRING DEVICE-KELLEMS

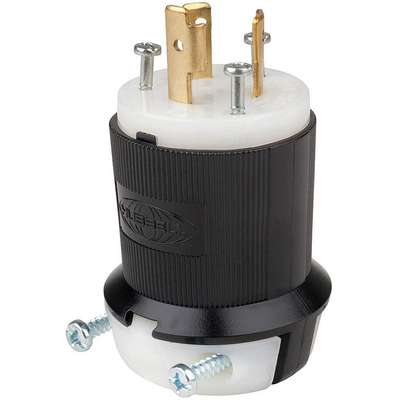

Hubbell Wiring Device-Kellems 20A Industrial Grade Non-Shrouded Locking Plug, Black/White; NEMA Configuration: L6-20P
Hover over image to magnify
#917477-6 | Pkg Qty: 1
$36.28 pkg | $36.28 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
20 A
Maximum Operating Temperature
75 °C
Antimicrobial
No
Maximum Wire Size
8 AWG
Blade Material
Brass
Mfr. Part Number
HBL2321
Body Length
2.26 in.
Minimum Operating Temperature
-40 °C
Boot Code
B
Minimum Wire Size
16 AWG
Brand
HUBBELL WIRING DEVICE-KELLEMS
NEMA Configuration - Plugs & Connectors
L6-20
Color Family
Black / White
NEMA Plug Configuration
L6-20P
Connection Orientation
Straight
Number of Blades
3
Cord Size
0.360 in. to 0.930 in.
Number of Poles
2
Corrosion Resistant
No
Number of Wires
3
Current Rating
20 A
Outside Diameter
2.26 in.
Description
Insulgrip, Grounding
Overall Length
2.26 in.
Face Diameter
1.97 in.
Package Quantity
1
For Environment
Dry
Phase
Single
For Location
Indoor
Polarized
Yes
Grade
Industrial
Shipping Weight
.3 lb.
Grounding
Grounded
Shrouded
No
HP
2 HP
Standards
CSA Certified C22.2 No. 42, Federal Specification W-C-596, UL 498
Horsepower
2 hp
Sub-Category
Plugs
Housing Material
Nylon
UL 94 Flammability Rating
HB
IP Rating
IP20
Voltage
250V AC
Item
Locking Plug
Wire Connection Type
Screw Terminals
Material
Nylon
Wiring Style
Standard
General
Amps - Plugs and Receptacles
20
NEMA Plug Configuration - Plugs and Receptacles
L6-20P
Grade - Plugs and Receptacles
Industrial
Voltage - Plugs and Receptacles
250V AC
HP
2.0
Product Description
NEMA Twist-Lock® Devices
- Premium-quality industrial wiring devices feature a powerful cord grip, 1-pc. dust shield, tough nylon housing, visible identification, and roomy wiring chamber.
Expertly Selected Product Pairings
Item Barcode
Plug,250VAC,20A,L6-20P,2P,3W,
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5A081 | Plug,250VAC, 20A,L6-20P, |
 | UNSPSC CODES | 39121403 | |
 | VMRS (ATA) CODES | 053-006-009 | Plug,250VAC, 20A,L6-20P, |
