VICTOR

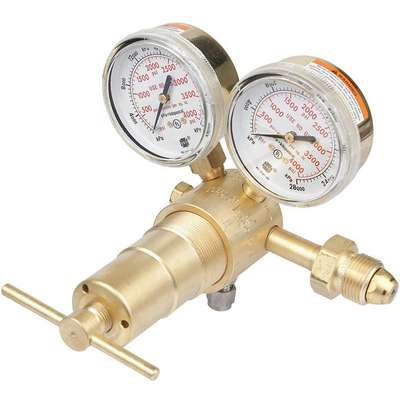

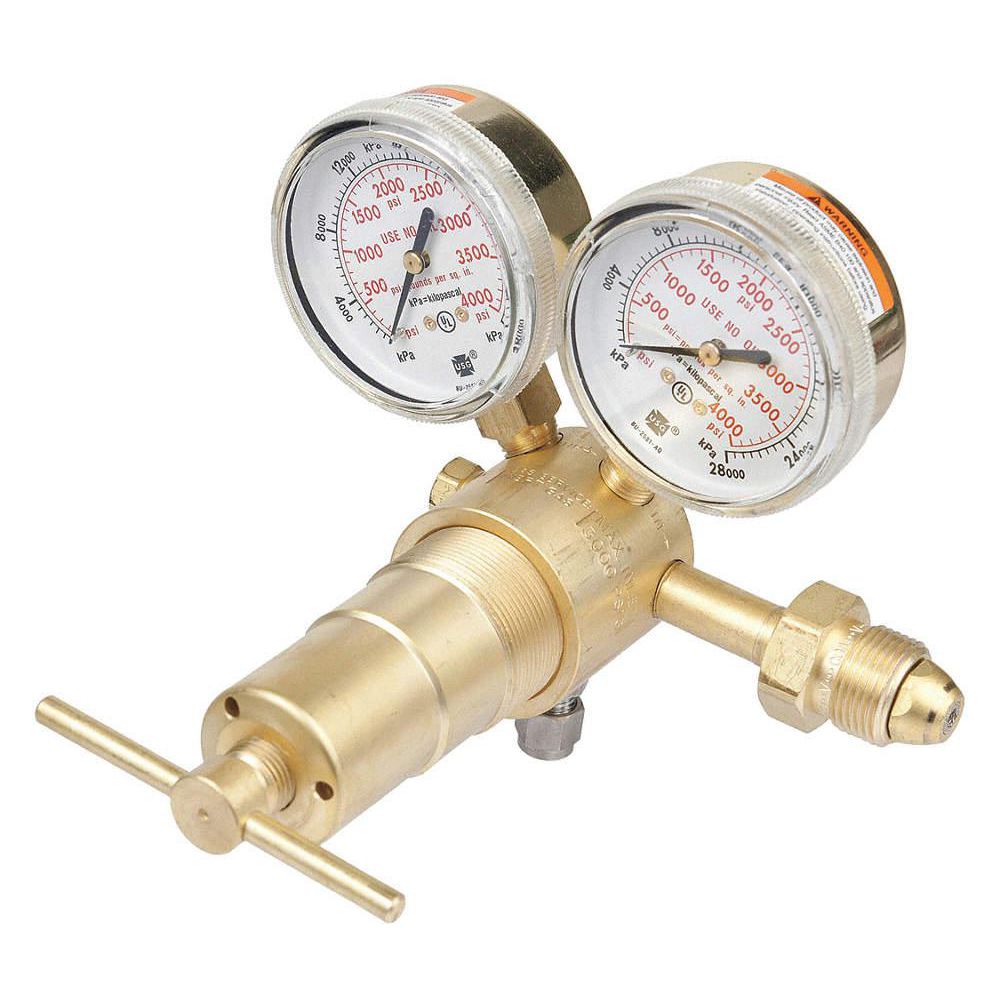

Victor Professional SR4J-580 Series Gas Regulator, 200 to 3000 psi, Argon, Helium, Nitrogen
Hover over image to magnify
#917468-5 | Pkg Qty: 1
$1,279.89 pkg | $1,279.89 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Body Material
Brass
Material
Machined Brass
Brand
VICTOR
Maximum Inlet Pressure
3000 psi
CGA Connection Inlet
580
Mfr. Part Number
0781-1448
Coefficient of Volume
0.114
Outlet Connection
1/4 in. Swagelok
Cylinder Gas
Argon, Helium, Nitrogen
Overall Length
6-1/2 in.
Delivery
16,600 scfh
Package Quantity
1
Delivery Pressure Range
200 to 3000 psi
Regulator Capacity
Heavy Duty
Diaphragm Material
Brass
Regulator Supply Type
Cylinder
Gas Service
Argon, Helium, Nitrogen
Series
Professional SR4J-580
Gauge Size
2-1/2 in.
Shipping Weight
4.4 lb.
Gauges Delivery Pressure
3000 psi
Stages
Single Stage
Inlet Connection
CGA-580
Supply Pressure Gauge
4000 psi
Inlet Gauge
4000 psi
Type
Single Stage Piston
Item
Gas Regulator
General
Application
High Pressure, Piston Style Regulator
Inlet Thread Direction
Right Hand
CGA Connection Outlet
1/4"
Maximum Gauge Outlet Pressure
4,000 psig
CGA Number
CGA 580
Mounting Type
Cylinder
Compatible Gas Type
Argon, Helium, Nitrogen
Number of Stages
Single Stage
Control Type
T-Handle
Outlet Connection Gender
Female
Flow Coefficient
0.1147
Outlet Connection Size
1/4 in
Gauge Diameter
2 1/2 in
Outlet Connection Type
Swagelok
Inlet Connection Gender
Male
Outlet Pressure (Maximum)
3,000 psig
Inlet Connection Size
0.965"-14
Outlet Pressure (Minimum)
200 psig
Inlet Connection Type
NGO
Regulator Application
High Pressure
Inlet Gauge (PSI)
4000
Regulator Series
SR 4
Inlet Pressure (Maximum)
3,000 psig
Standards
Listed to UL252 by ETL
Product Description
Delrin Cap Bushing for Smooth Adjustments, External Adjustable Relief Valves on F and G Range Models, Hydrogen Models Have Ventable Relief Valves, Ideally Suited for Pressure Vessel and Dead-End Testing, Sintered Inlet Filter
