LUMAPRO

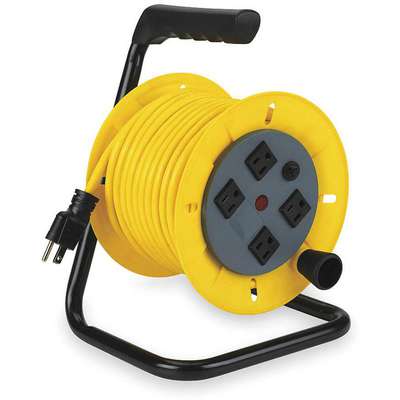

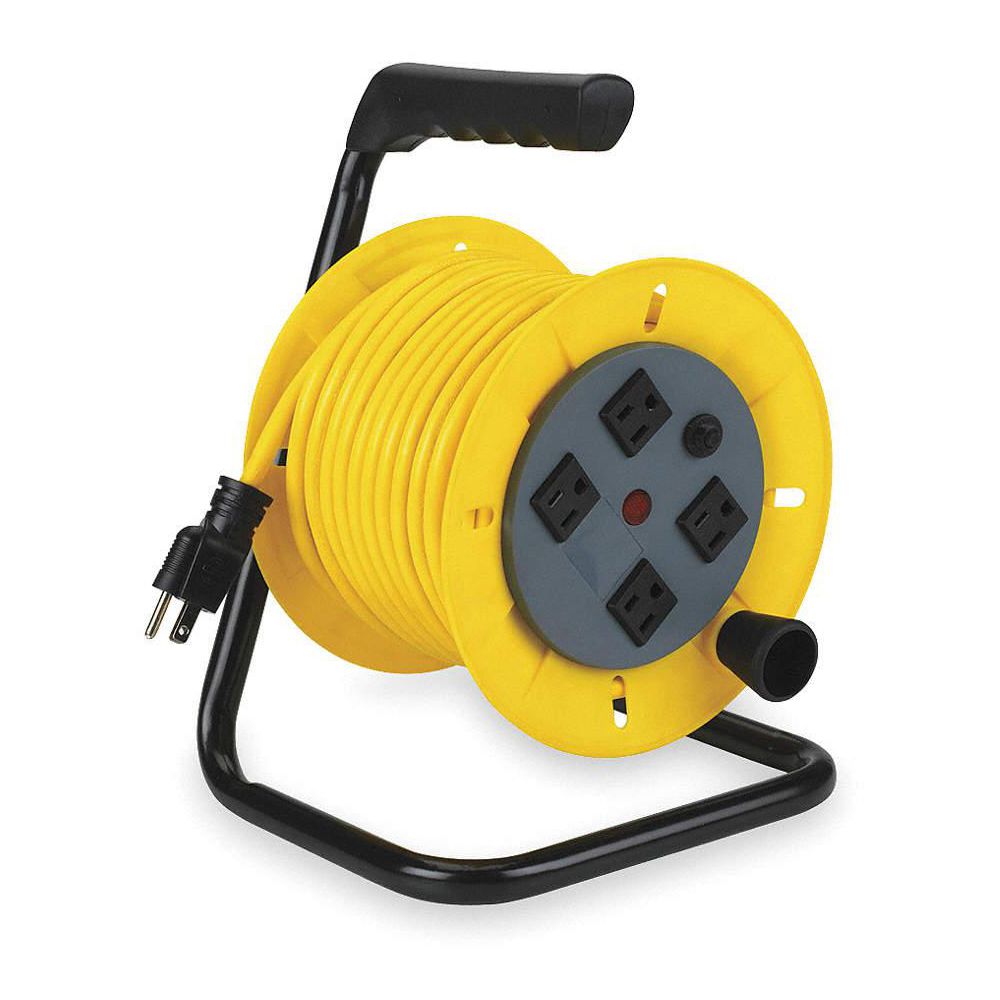

LumaPro 40 ft. Extension Cord Reel; 120 VAC; Yellow Reel Color

Hover over image to magnify
Cord Reel,Manual,14/3,40Ft,
PI_Asset_947839
Cord Reel,Manual,14/3,40Ft,
PI_Asset_947839

#917403 | Pkg Qty: 1

$107.03 pkg | $107.03 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
LUMAPRO
NEC Cord Designation
SJTW
Cord Color
Yellow
Number of Conductors
3
Cord Ending NEMA Configuration
5-15P
Number of Outlets
4
Cord Included
Yes
Overall Depth
8 in.
Cord Length
40 ft.
Overall Height
12 in.
Enclosed Reel
No
Overall Width
9 in.
Enclosure Rating
Not Rated
Package Quantity
1
Feeder Cord Ending
Grounding Plug
Reel Color
Yellow
Feeder Cord Ending NEMA Configuration
5-15R
Reel Material
Polypropylene/Steel
Feeder Cord Length
40 ft.
Reel Mounting
Hand Hold
Indoor/Outdoor
Indoor
Shipping Weight
6.7 lb.
Item
Extension Cord Reel
Temperature Range
-10 deg. F to 140 deg. F
Maximum Amps
13
Voltage
120 VAC
Mfr. Part Number
2YKR4
Wire Size
14 AWG
General
Cord Length - Ext. Cords and Outlet Strips
40 ft.
NEC Cord Designation - Ext. Cords and Outlet Strips
SJTW
Feeder Cord Ending Configuration
NEMA 5-15R
Retractable Cord Ending
Quad Receptacle On Reel
Gauge/Conductor - Ext. Cords and Outlet Strips
14/3
Retractable Cord Ending Configuration
NEMA 5-15P
Grade - Ext. Cords and Outlet Strips
General Purpose
Retractable Cord Length
40 ft
Includes
Circuit Breaker
Standards
cETLus
Includes Cord
Yes
Trade Designation
SJTW
Indoor / Outdoor
Indoor
Voltage - Ext. Cords and Outlet Strips
120VAC
Location
Indoor
Winding Method
Hand Operated
Max. Amps - Ext. Cords and Outlet Strips
13.0

Product Description

Hand-winding cord reels have a handle or knob that is turned by hand to wind the extension cord around the spool when not in use. They are typically used with lightweight or shorter cords in retail or small business applications, where rewinding the cord manually doesn't take too much effort. These reels hold extension cords that supply temporary power to devices located some distance away from an electrical outlet.

Standard cord reels are spools that hold extension cords to provide access and storage while protecting them from tangling, kinking, and other damage. The cord can be extended to exactly the length needed to power equipment located at a distance from a power source. Self-retracting and motor-driven cord reels automatically wind extended cord back on the reel, while hand-winding cord reels have a handle or knob for winding the cord manually. These cords can be mounted out of the way in a central location, such as on a wall or ceiling, to keep a workspace organized and help reduce tripping hazards. They are commonly used in retail, commercial, and manufacturing applications, including pressure washing, landscaping and ground maintenance, and service garages.

Compliance & Restrictions

California Proposition 65 Icon
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
9174030
Cord Reel,Manual,14/3,40Ft,
 NameItemDescription
Grainger DropshipGrainger Dropship2YKR4Cord Reel, Manual,14/3,
UNSPSC CODESUNSPSC CODES26121635
VMRS (ATA) CODESVMRS (ATA) CODES053-007-002Cord Reel, Manual,14/3,
