KURIYAMA
P VC with Wire Helix and Yarn Reinforcement Reinforced Tubing, SAE, 3/4" Inside Dia., 1-3/16"Outside
Hover over image to magnify
#917400-8 | Pkg Qty: 1
$1,022.66 pkg | $1,022.66 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Bend Radius
2-1/2 in.
SAE or Metric
SAE
Brand
KURIYAMA
Shipping Weight
39.75 lb.
Hardness
Shore A: 73
Tensile Strength
2200 psi
Inside Diameter
3/4 in.
Tube Color
Clear
Item
Reinforced Tubing
Tube Length
100 ft.
Mfr. Part Number
K7300-12X100
Tube Material
PVC with Wire Helix and Yarn Reinforcement
Outside Diameter
1-3/16 in.
Wall Thickness
13/64 in.
Package Quantity
1
General
Application
Water and Liquid Food Transfer
Standards
FDA, USDA, NSF, ROHS and 3A
Flexibility
Flexible
Temp. Range
15 Degrees to 150 Degrees F
Green Certification/Other Recognition
NSF® Certified (Sustainability or Environmental Standard), USDA Certified Biobased Product
Tube Hardness
Shore A: 73
Metal Detectable
Yes
Product Description

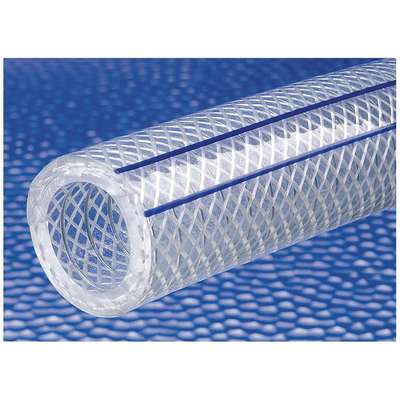

Reinforced PVC Tubing
- Hardness: Shore A73 Clear color
- Heavy-Wall Reinforced
- temperature range: 15° to 150°F
- For vacuum and/or higher-pressure applications. Steel wire dissipates static; yarn reinforcement allows higher working pressure.
- FDA Approved; meets USDA, NSF, ROHS, and 3A.
Item Barcode
Reinforced Tubing,225 PSI At
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 4EGR4 | Reinforced Tubing,225 |
 | UNSPSC CODES | 40183002 | |
 | VMRS (ATA) CODES | 053-008-003 | Reinforced Tubing,225 |
