SIEMENS

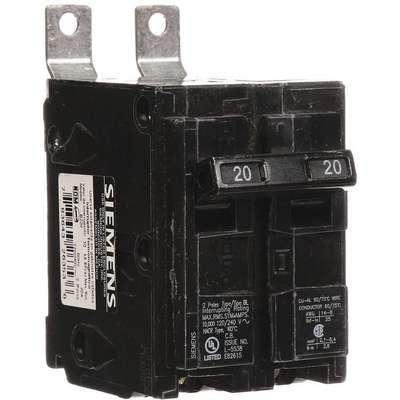

Siemens Bolt On Circuit Breaker, 20 Amps, Number of Poles: 2, 120/240VAC AC Voltage Rating
Hover over image to magnify
#917398-1 | Pkg Qty: 1
$191.91 pkg | $191.91 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
AC Voltage Rating
120/240VAC
Instantaneous Trip
Fixed
Air @ 120 VAC
10kA
Item
Miniature Circuit Breaker
Air @ 125 VDC
Not Rated
Length
2 in.
Air @ 240 VAC
10kA
Maximum Air Rating
10kA at 120/240VAC
Air @ 277 VAC
Not Rated
Maximum Wire Size
10 AWG
Air @ 48 VDC
Not Rated
Mfr. Part Number
B220
Air @ 480 VAC
Not Rated
Minimum Wire Size
12 AWG (Al), 14 AWG (Cu)
Air @ 600 VAC
Not Rated
Number of Poles
2
Air @ 65 VDC
Not Rated
Package Quantity
1
Amperage
20 A
Panelboard Mounting
Bolt-On
Amps
20 A
Phase
Single
Brand
SIEMENS
Phase Connection
Any
Circuit Breaker Type
Standard
Series
BL
DC Voltage Rating
Not Rated
Shipping Weight
.65 lb.
Depth
3 in.
Terminal Connection
Lug
For Use With
Siemens P1 Panelboards
Type
Panelboard Mount
Frame Size
125A/BL
Voltage
120 - 240VAC
High Amp Trip Setting
20 A
Width
3 in.
General
AIR @ 120VAC
10kA
Circuit Breaker Mounting Style
Bolt On
AIR @ 240VAC
10kA
Compatible Panelboard/Load Center Series
P1
Circuit Breaker Actuator
Toggle
Standards
CSA Certified, HACR Rated, NOM Certified
Product Description
These B series miniature circuit breakers are bolted into place in panelboards, so they're more stable than plug-in breakers. They interrupt currents when low-level faults are detected in the circuit. They have a lug orientation to allow for straight-in wiring through bus bars, which eliminates the need to pigtail wires and helps organize the panelboard.
Expertly Selected Product Pairings
Item Barcode
Bolt On Circuit Breaker,20A,2
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 3CMZ4 | Bolt On Circuit |
 | UNSPSC CODES | 39121601 | |
 | VMRS (ATA) CODES | 053-006-009 | Bolt On Circuit |
