OMRON

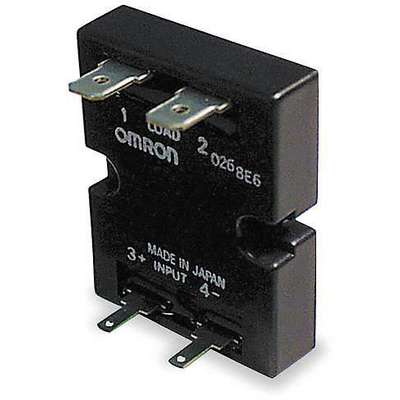

Omron 1-Pole Surface Mount Solid State Relay; Max. Output Amps w/Heat Sink: 10
Hover over image to magnify
#917385-4 | Pkg Qty: 1
$27.24 pkg | $27.24 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Amperage
10 A
Maximum Output w/Heat Sink
10A
Body Depth
1.47 in.
Mfr. Part Number
G3NE-210T-US-DC5
Body Height
0.45 in.
Minimum Input Volts
5
Body Width
1.87 in.
Minimum Output Volts
100
Brand
OMRON
Mounting
Surface
Case Color
Black
Number of Poles
1
Contact Form
SPST-NO
Output or Controlled Voltage
100 to 240 VAC
Finger Safe
No
Overall Height
0.77 in.
Heat Sink
Not Included
Package Quantity
1
Input Power Consumption
0.1 W
Phase
1
Input Voltage
4 to 6 VDC
Relay Turns On At
Zero Crossing
Input or Control Voltage
4 to 6 VDC
Shipping Weight
.1 lb.
Item
Solid State Relay
Switch Type
Phototriac
Maximum Input Volts
5
Turns On At
Zero Cross
Maximum Output Amps w/Heat Sink
10
Voltage Output
100 to 240VAC
Maximum Output Volts
240
General
Body Depth - Relay
1.47 in
Mounting - Relay
Surface
Body Height - Relay
0.45 in
Mounting - Solid State Relay
Surface
Body Width - Relay
1.87 in
Output or Controlled Voltage Range
100 to 240V AC
Contact Form - Relay
SPST-NO
Overall Height - Relay
0.77 in
Max. Output Amps Without Heat Sink
5.0 A
Product Description
Solid State Relay, Input or Control Voltage 4 to 6V DC, Output or Controlled Voltage Range 100 to 240V AC, Max. Output Amps w/Heat Sink 10, Heat Sink Not Included, Switch Type Phototriac, Contact Form - Relay SPST-NO, Relay Turns On At Zero Crossing, Input Power Consumption (Burden) 0.1W, Mounting - Relay Surface, Finger Safe No
Item Barcode
Solid State Relay,4 To 6VDC,10A
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5ZH25 | Solid State Relay,4 to |
 | UNSPSC CODES | 39122333 | |
 | VMRS (ATA) CODES | 053-007-002 | Solid State Relay,4 to |
