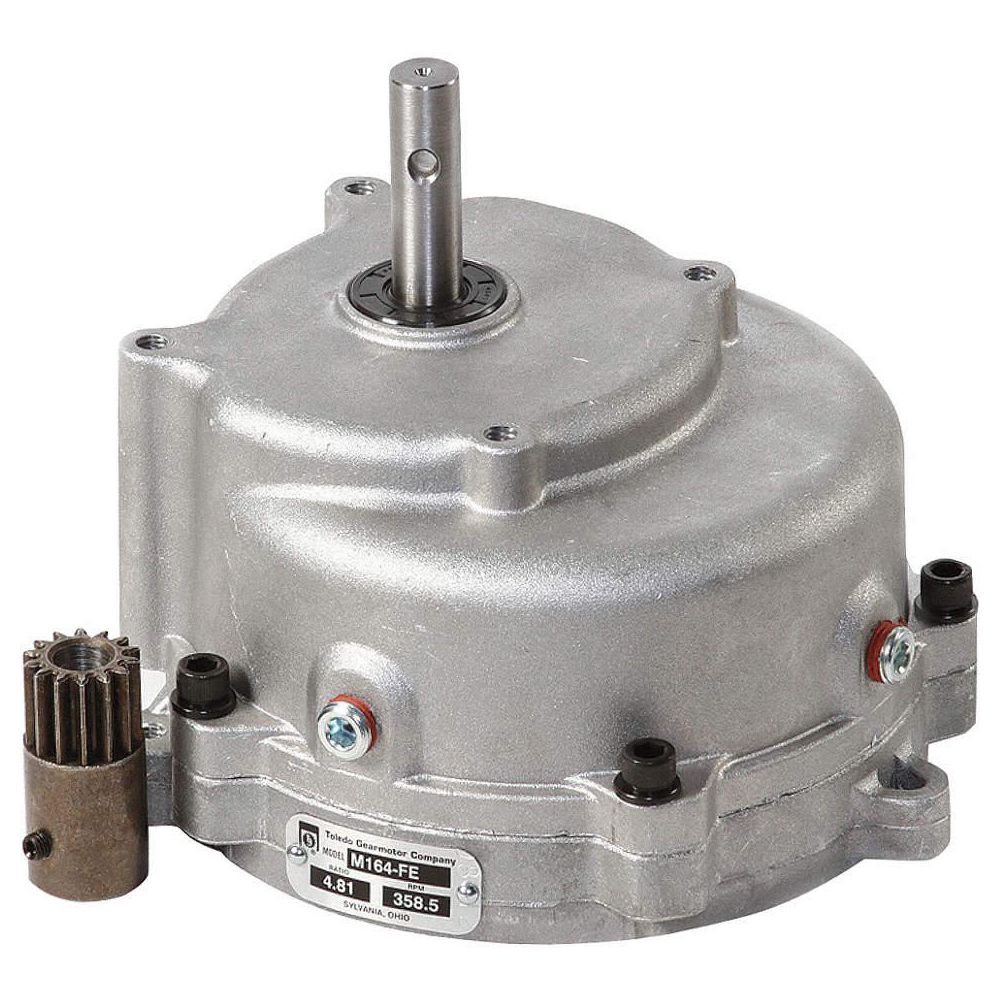

Class I Die Cast Aluminum Direct Drive, Inline Speed Reducer, Single Output, 107 lb. Overhung Load

Name: Class I Die Cast Aluminum Direct Drive, Inline Speed Reducer, Single Output, 107 lb. Overhung Load
Brand: TOLEDO GEARMOTOR
SKU: 9173756
Price: 533.07 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#917375-6Pkg Qty: 1

$533.07 pkg | $533.07 ea

In Stock

Shipping to 43085

Ships from supplier. Expected to arrive on or before Wed. Apr 16.

Technical Specifications

Key Specifications

Bearings

Ball

Item

Speed Reducer

Bore Diameter

1/2 in.

Lubrication

Shipped Dry, Recommend Synthetic 75W90

Brand

TOLEDO GEARMOTOR

Mfr. Part Number

M164-48N-FE

Dimension A

8.0 in.

Mounting

Any Position

Dimension B

4.15 in.

Nominal Output RPM

358

Dimension C

1.18 in.

Number of Stages

Dimension D

7.25 in

Overhung Load

107 lb.

Dimension F

6.31 in.

Package Quantity

Dimension G

0.5 in.

Pinion Material

Hardened and Ground Steel

Dimension H

2.23 in /2.30 in

Reducer Model Number

M164-48N

Dimension L

0.15 in.

Rotation

Reversible

Duty

Class I

Seal Type

Double Lip on input and Output

Frame

48N

Shaft Orientation

Parallel

Gear Material

Steel

Shipping Weight

6 lb.

Gear Type

Spur

Single/Double Output/Universal

Single Output

Housing Material

Die Cast Aluminum

Speed Reducer Type

Direct Drive, Inline

General

Input RPM

1,725 RPM

Output Torque @ 1.5 HP

255 in-lb

Max. Input HP

1.5 hp

Output Torque @ 1/2 HP

88 in-lb

Max. Output Torque

255 in-lb

Output Torque @ 1/3 HP

58 in-lb

Nominal Ratio

4.8:1

Output Torque @ 1/4 HP

44 in-lb

Output Torque @ 1 HP

176 in-lb

Output Torque @ 3/4 HP

132 in-lb

Product Description

Speed reducer features a precision-machined die-cast aluminum housing for accurate shaft alignment, and 2-stage spur gearing with induction-hardened teeth. Through-hardened and ground pinions are cut integral with shafts; ball bearings on output shaft. Shipped dry, lubricate before use. Suitable for use in fill systems, hog and poultry feed lines, mixers, screw conveyors, and spreaders.
