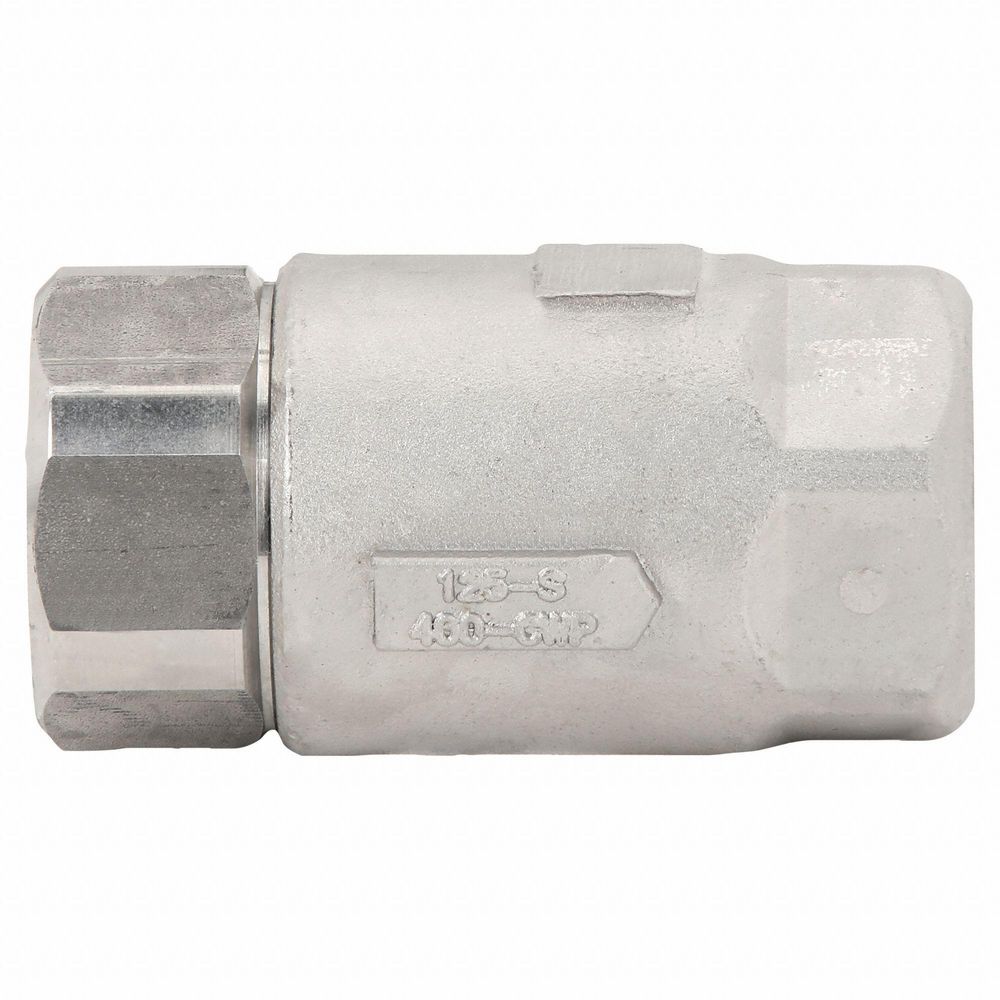

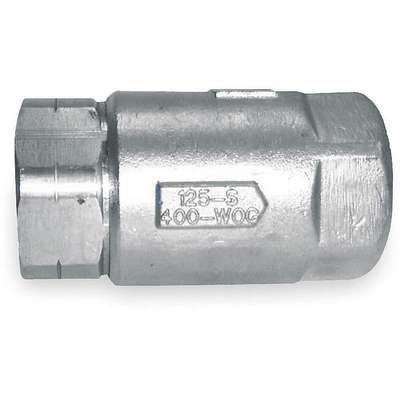

Ball Cone Spring Check Valve: Single Flow, Inline Ball Cone, Stainless Steel, FNPT x FNPT

Name: Ball Cone Spring Check Valve: Single Flow, Inline Ball Cone, Stainless Steel, FNPT x FNPT
Brand: APOLLO
SKU: 9173653
Price: 242.07 USD
Availability: InStock

Hover over image to magnify

Double tap image to magnify

#917365-3Pkg Qty: 1

$242.07 pkg | $242.07 ea

In Stock

Shipping to 43085

Expected to arrive Mon. Mar 31.

Technical Specifications

Key Specifications

Brand

APOLLO

Mfr. Part Number

6210501

Connection Type

FNPT

Mounting Position

Vertical or Horizontal

Item

Ball Cone Spring Check Valve

Overall Height

1-3/4 in.

Length

3-1/2 in.

Package Quantity

Material

Stainless Steel

Shipping Weight

1.5 lb.

Maximum Temperature

350 deg.

Width

3-1/2 in.

General

Application - Valves

General Purpose

Max. Water Pressure - Valves

400 psi

Body Material - Valves

Stainless Steel

Mechanism and Body Design

Inline Ball Cone

Flow Design

Single

Min. Temp. - Valves

33 Degrees F

Max. Steam Pressure - Valves

150 psi WSP

Mounting Orientation

Horizontal, Vertical

Max. Temp. - Valves

180 Degrees F

Pipe or Tube Size

1 in

Product Description

Providing a tight shutoff with liquid media, this APOLLO ball cone spring check valve has a straight-through design that assures a minimum change in velocity and protects against reverse flow. Model is spring-loaded for fast seating action and requires no radial alignment.
