GF PIPING SYSTEMS

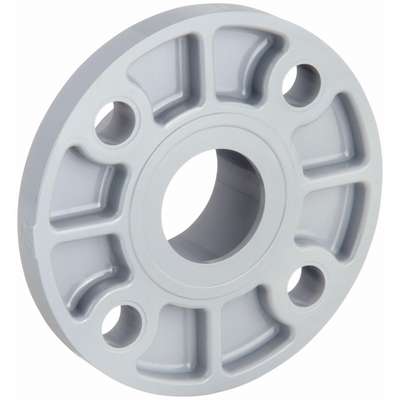

Schedule 80 CPVC Solid Flange, 2" Pipe Size, Socket Fitting Connection Type

Hover over image to magnify
Solid Flange,CPVC,80,2 In.,
PI_Asset_1983263
Solid Flange,CPVC,80,2 In.,
PI_Asset_1983263

#917357-5 | Pkg Qty: 1

$27.92 pkg | $27.92 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Body Material
CPVC
Maximum Temperature (Deg. F)
210°F
Brand
GF PIPING SYSTEMS
Mfr. Part Number
9851-020
Class
Schedule 80
Number of Holes
4
Color Family
Gray
Outside Diameter
6 in.
Connection Type
Socket
Package Quantity
1
Item
Solid Flange
Pipe Size
2 in.
Maximum Pressure
150 psi @ 73°F
Shipping Weight
.73 lb.
General
Connection Surface
Flat
Nominal Pipe Size
2 in
Fitting Pipe Size
2 in
Number of Bolt Holes
4
For Pipe Schedule
80
Standards
ASTM D1784, NSF14
Low Lead Certified Standard
NSF61
Temp. Range
210 Degrees F
Low Lead Compliance Level
Certified

Product Description

This tough, lightweight, and corrosion-resistant GF PIPING SYSTEMS solid flange is highly resistant to acids, alkalis, alcohols, and many other corrosive materials. Fitting is much lighter (about 1/6th as much as steel) to help speed and simplify handling during installation, plus it won’t corrode, pit, rust, scale, nor is it subject to electrolysis. Material is not affected by soil conditions if fitting is buried. For outdoor applications that are exposed to sunlight, 2 coats of white-colored, water-base latex paint provide additional protection.
