DAYTON

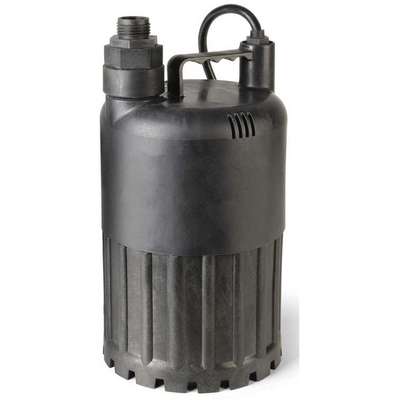

1/3 HP Dewatering Pump with 120VAC Voltage and Discharge NPT 1-1/4" M, 10 ft. Cord Length

Hover over image to magnify
Pump,Utility,1/3 Hp
PI_Asset_950588
PI_Asset_950589
Pump,Utility,1/3 Hp
PI_Asset_950588
PI_Asset_950589

#917356-4 | Pkg Qty: 1

$150.66 pkg | $150.66 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Amps
3 AC
Housing Material
Polypropylene
Amps AC
3
Impeller Material
Polyamide
Base Material
Polypropylene
Item
Dewatering Pump
Brand
DAYTON
Maximum Diameter Solids
1/8 in.
Cord Length
10 ft.
Maximum Head
25 ft.
Cord Size
18/3
Maximum Liquid Temperature
104°F
Cord Type
SJTOW
Mfr. Part Number
3YU56
Diameter
6
Package Quantity
1
Discharge NPT
1-1/4 in. M
Pump Body Material
Polypropylene
Function
Pumps Drain Standing Water Down to 3/8 Inhes Depth to Dewater Shallow Flooded Areas such as Basements, Window Wells, Rooftops, Ponds and Stock Tanks
Pump HP
1/3
GPM of Water @ 10 Ft. of Head
31
Shaft Material
Stainless Steel
GPM of Water @ 15 Ft. of Head
22.2
Shaft Seal
CRB/CMC
GPM of Water @ 20 Ft. of Head
12
Shaft Seal Material
Carbon, Ceramic
GPM of Water @ 5 Ft. of Head
41.7
Shipping Weight
8.35 lb.
Handle
Top Carrying
Suction
Screened Bottom
Height
10-1/2 in.
Switch Type
No Switch Included
Horsepower
1/3
Top Material
Polypropylene
Housing
Polypropylene
Voltage
120 VAC
General
Application
Nonflammable Liquids Compatible with Pump Materials
Flow Rate @ 5 Ft. of Head
41.7 gpm
Body Dia.
6 in
For Use With
Nonflammable Liquids Compatible with Pump Materials
Discharge Dia.
1 1/4 in
Includes
Discharge Adapter Size, 1" FNPT x 3/4" Hose
Discharge Gender
Male
Max. Liquid Temp.
104 Degrees F
Discharge Standard
NPT
Min. Sump Pit Dia.
18 in
Features
Pumps Drain Standing Water Down to 3/8 Inhes Depth to Dewater Shallow Flooded Areas such as Basements, Window Wells, Rooftops, Ponds and Stock Tanks
Nominal Voltage
110V AC
Flow Rate @ 10 Ft. of Head
31 gpm
Rated Voltage
115V AC
Flow Rate @ 15 Ft. of Head
22.2 gpm
Shaft Seal Material - Pumps
Carbon, Ceramic
Flow Rate @ 20 Ft. of Head
12 gpm
Switch Actuation
No Switch Included

Product Description

These 110 to 120V plug-in utility and dewatering pumps transfer moderate amounts of water on jobsites and accept an inlet hose so they don't have to be placed in the water that needs to be drained. Some pumps come with a switch for automatic on/off operation, while other models allow installation of an automatic switch. They are compatible with most standard U.S. residential electrical wall outlets and have a Type A (two prongs, ungrounded) or Type B (three prongs, grounded) power cord plug.
