DAYTON

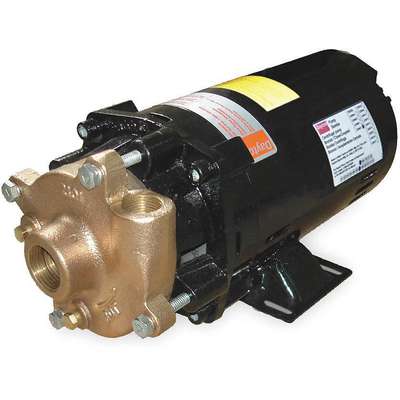

208 to 240/480 VAC Open Dripproof Centrifugal Pump, 3-Phase, 1-1/2" NPT Inlet Size

Hover over image to magnify
Centrifugal Pump,1.5 Hp,3 Ph,
Centrifugal Pump,1.5 Hp,3 Ph,

#917348-7 | Pkg Qty: 1

$1,033.08 pkg | $1,033.08 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Agency Compliance
c UL us
Maximum Head
67
Amps
4.4-3.9/2.0 A
Maximum Liquid Temperature
200°F
Bearing Type
Ball
Maximum Pressure
29.00 psi
Bearings
Ball
Maximum Specific Gravity
1
Best Efficiency GPM @ Head
72 gpm @ 44 ft.
Mfr. Part Number
2ZWT3
Best Efficiency Range GPM @ Head
55 to 99 gpm @ 55 to 25 ft.
Mfr. Warranty Length
1 yr.
Brand
DAYTON
Minimum GPM @ Head
40 gpm @ 60 ft.
Drain Plug
Easily Accessible, 2 Position
Motor Enclosure
ODP
Duty
Continuous
Motor RPM
3450
Duty Cycle
Continuous
Motor Type
3-Phase
Frame
56J
NEMA/IEC Frame
56J
GPM of Water @ 10 Ft. of Head
115
Number of Port Positions
4 Position
GPM of Water @ 15 Ft. of Head
109
Outlet Size
1-1/4 in. NPT
GPM of Water @ 20 Ft. of Head
104
Pack Quantity
1
GPM of Water @ 25 Ft. of Head
99
Phase
3
GPM of Water @ 30 Ft. of Head
94
Port Rotation
4 Position Increments
GPM of Water @ 40 Ft. of Head
81
Pump Height
6 in.
GPM of Water @ 50 Ft. of Head
64
Pump Length
15 in.
GPM of Water @ 60 Ft. of Head
40
Pump Size
1-1/2 in. X 1-1/4
Height
6 in.
Screw Material
Steel, Zinc Plated
Horsepower
1-1/2
Seal Application
Long Life When not Run Dry or Pumping Abrasives
Housing Material
Bronze, Brass
Seal Material
Buna-N, Carbon, Ceramic, Stainless Steel
Hz
60
Seal Type
Mechanical
Impeller Material
Bronze/Brass
Service Factor
1.3
Impeller Type
Semi Open
Shaft Material
Stainless Steel
Inlet
1-1/2 in. NPT
Shaft Size
5/8 in.
Inlet Pressure
200 psi
Shipping Weight
51 lb.
Item
Straight Centrifugal High Flow Pump
Type
Centrifugal
Length
15 in.
Voltage
208 to 240/480 VAC
Liquid Compatibility
Nonflammable, Non Abrasive
Volute Material
Bronze, Brass
Maximum Case Pressure
200 psi
Warranty
2ACD2
Maximum Diameter Solids
1/2 in.
Wetted Materials
Bronze, Brass, Buna-N, Carbon, Ceramic, Stainless Steel
Maximum Fluid Viscosity
100 SSU
Width
7-1/8 in.
Maximum GPM @ Head
115 gpm @ 10 ft.
General
Application
Suitable for general transfer, boiler feed, condensate return, water circulation, irrigation, cooling towers, filtration, and pressure boosting.
Includes
Manual
Best Efficiency Flow
72 gpm
Intake Type
NPT
Best Efficiency Head
44 ft
Intake and Discharge Size
1 1/2 in , 1 1/4 in
Compatible Discharge Pipe Size
1 1/4 in
Manufacturer Warranty Length
1 yr
Compatible Intake Pipe Size
1 1/2 in
Maximum Feet of Head
67 ft
Compatible with Media Type
Non-Flammable Liquids
Maximum Media Temperature
200 Degrees F
Discharge Rotation
90 Degrees Increments
Minimum Media Temperature
40 Degrees F
Discharge Type
NPT
Motor Enclosure Type
ODP
Feet of Head (Minimum)
10 ft
Motor Frame Designation
56J
Flow Rate @ 10 ft of Head (Maximum)
115 gpm
Nameplate Voltage
208-230/460V AC
Flow Rate @ 15 ft of Head (Maximum)
109 gpm
Nominal Voltage
208-230/460V AC
Flow Rate @ 20 ft of Head (Maximum)
104 gpm
Pump Housing Material
Bronze
Flow Rate @ 30 ft of Head (Maximum)
94 gpm
Pumping Application
Aggressive Liquid Applications and Other General Purpose Pumping, Boiler Feed, Boosters, Chemical Processing, Condensate Return, Cooling Towers, Filtration, Fountains, General Transfer, Irrigation, Jockey Pump Service, Marine Applications, Spraying Systems, Utility, Water Circulation
Flow Rate @ 40 ft of Head (Maximum)
81 gpm
Shut Off Pressure (Maximum)
29 psi
Flow Rate @ 50 ft of Head (Maximum)
64 gpm
Solid Diameter (Maximum)
0.5 in
Flow Rate @ 60 ft of Head (Maximum)
40 gpm
Specific Gravity (Maximum)
1
For Use With
Non-Flammable and Non-Abrasive Liquids Compatible with Pump Component Materials
Wetted Material
Brass, Bronze, Buna-N, Carbon, Ceramic, Stainless Steel
Impeller Design
Semi-Open

Product Description

Dayton close-coupled units pump continuously, producing high flow rates under low-head conditions. Designed for continuous low-pressure circulation and transfer of nonflammable liquids, utility, boiler feed, general transfer, filtration, cooling towers, condensate return, marine applications, fountains, boosters, water circulation, irrigation, spraying systems, jockey pump service, chemical processing, aggressive liquid applications, and other general purpose pumping compatible with pump component materials where no suction lift or self priming is required.
