PARKER

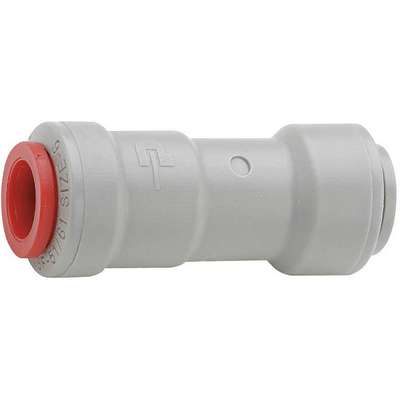

Check Valve: Single Flow, Inline Ball, Acetal Resin Copolymer, 3/8 in Pipe/Tube Size, EPDM
Hover over image to magnify
#917333-1 | Pkg Qty: 1
$17.42 pkg | $17.42 ea
Drop Ship Item
Shipping to 60045
Technical Specifications
Key Specifications
Brand
PARKER
Maximum Temperature
150 deg. F
Connection Type
Push
Mfr. Part Number
A6VC6-MG
Item
Check Valve
Package Quantity
1
Length
2.15 in.
Shipping Weight
.03 lb.
Material
Acetal Resin Copolymer
Width
0.8 in.
General
Application - Valves
Corrosives
Max. Water Pressure - Valves
150 psi
Body Material - Valves
Acetal Resin Copolymer
Mechanism and Body Design
Inline Ball
Flow Design
Single
Min. Temp. - Valves
34 Degrees F
Full Flow - Valves
Yes
Mounting Orientation
Horizontal, Vertical
Green Certification/Other Recognition
NSF® Certified (Sustainability or Environmental Standard)
Pipe or Tube Size
3/8 in
Max. Temp. - Valves
150 Degrees F
Standards
NSF-51 Certified, FDA Compliant and RoHS Compliant
Product Description
LIQUIfit Bio-Based Nylon Push-To-Connect Fittings
- Max. pressure: 230 psi (1/4"), 190 psi (3/8"), 160 psi (1/2"); except check valves are 150 psi Temp. range: 35 to 200°F; except check valves are 34° to 150°F Preapplied PTFE sealant allows immediate installation with no need for tube inserts or locking clips. All threads are NPTF. Suitable for car washing, water purification, reverse osmosis, and milk and dairy. FDA and NSF 51 and 61 (C HOT) Certified. RoHS compliant, except Part Numbers: 430L311 to 40L320. All fittings are certified for use in potable water applications. Check Valves
- Acetyl construction Cracking pressure: 1/3 psi
Compliance & Restrictions
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
Item Barcode
Check Valve,Acetal,3/8 In,0.33
| Name | Item | Description | |
|---|---|---|---|
 | Grainger Dropship | 5UMV3 | Check Valve, Acetal,3/8 |
 | UNSPSC CODES | 40141622 | |
 | VMRS (ATA) CODES | 053-006-009 | Check Valve, Acetal,3/8 |
