CAROL

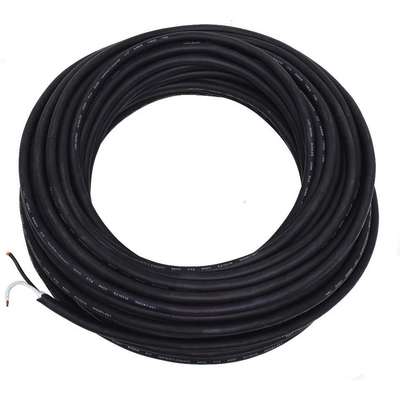

Carol 100 ft. Portable Cord; Conductors: 2, Wire Size: 16 AWG, Jacket Type: SOOW, Jacket Color: Black

Hover over image to magnify
Portabl Cord,16/2 Awg,100 Ft.,
Portabl Cord,16/2 Awg,100 Ft.,

#917323-3 | Pkg Qty: 1

$120.58 pkg | $120.58 ea

Drop Ship Item

Shipping to 60045
|

Technical Specifications

Key Specifications
Brand
CAROL
Number of Conductors
2
Conductor Material
Copper
Package Quantity
1
Gauge/Conductor
16/2
Shipping Weight
9.15 lb.
Indoor/Outdoor
Indoor/Outdoor
Spool Length
100 ft.
Item
Portable Cord
Spool/Coil Length
100 ft.
Jacket Color
Black
Stranded / Solid
Stranded
Jacket Material
Rubber
Temperature Range
-40 deg. F to 90 deg. F
Jacket Type
SOOW
Voltage
600 V
Length
100 ft.
Wire Color
Black, White
Maximum Amps
13
Wire Size
16 AWG
Maximum Voltage
600 V
Wire and Cable Item
Portable Cord
Mfr. Part Number
E3672
Wire/Cable Size
16 AWG
Nominal Outside Diameter
0.370 in.
General
Conductor Design
Stranded
Location
Outdoor
Features
Oil/Sunlight Resistant, Weatherproof, Waterproof
Special Features
Oil/Sunlight Resistant, Waterproof, Weatherproof
Indoor / Outdoor
Indoor/Outdoor
Standards
UL Flexible Cord, CSA, MSHA Approved, RoHS Compliant
Jacket Material - Wire and Cable
Rubber
Trade Designation
SOOW
Jacket Type - Wire and Cable
SOOW
Wire Size - Wire and Cable
16 AWG

Product Description

SOOW and SJOOW portable cord are types of heavy-duty service cord with oil-resistant insulation and a flexible thermoset rubber jacket that is oil-, water-, and weather-resistant. The jacket hardens under a direct application of heat. This allows the cord to be unaffected by aging, abrasion, water, sunlight, and ozone, making it extremely durable. SOOW cord is rated for 600V while SJOOW, a junior service cord, is rated for 300V. SOOW is the most popular type of portable cord and is typically used to power industrial applications, such as machines and power tools, and marine applications, such as dockside motors.

Portable cord is flexible, moveable electrical cable that consists of one or more insulated conductors enclosed in a jacket. It is typically used for temporary power connections. Portable cord can be exposed to constant flexing and harsh environmental conditions, including temperature extremes, oil, chemicals, and abrasive materials. There are multiple types of portable cord, as designated by industry standard letter codes that describe various attributes (temperature range, wire size) and ratings (voltage) and help ensure the best cord is selected for an application. Portable cord is commonly used for temporary wiring projects in industrial and commercial facilities, such as supplying power to portable tools, appliances, and equipment, as well as small motors and associated machinery. It does not include plugs on the ends of the cord.

Item Barcode
9173233
Portabl Cord,16/2 Awg,100 Ft.,
 NameItemDescription
Grainger DropshipGrainger Dropship20PY64Portabl Cord, 16/2 AWG,100
UNSPSC CODESUNSPSC CODES26121636
VMRS (ATA) CODESVMRS (ATA) CODES053-006-009Portabl Cord, 16/2 AWG,100
